LTZC Large Diameter Crossed Roller Slewing Bearing passed CCS inspection.

I. LTZC Large-Diameter Slewing Bearings Pass CCS Inspection

Against the backdrop of continuous upgrades in global shipbuilding, offshore engineering equipment, port machinery, and large-scale lifting equipment, the reliability of core rotating components has emerged as a critical factor determining the overall performance of the complete machine. Among these components, large-diameter slewing bearings—due to their capacity to handle complex loads, their operation in harsh environments, and their high maintenance costs—place exceptionally high demands on design capabilities, manufacturing processes, material properties, and quality control.

Recently, a large-scale Crossed Roller Slewing Bearing manufactured by LTZC successfully passed inspection by the China Classification Society (CCS). This milestone marks yet another significant achievement for LTZC in the field of high-end marine bearing manufacturing. It not only demonstrates LTZC's comprehensive strength as a specialized slewing bearing supplier but also validates the company's consistent delivery capabilities within the heavy-duty roller bearing sector.

For marine deck machinery, offshore lifting equipment, port cranes, floating crane systems, and large-scale rotating platforms, the use of slewing bearings that have passed inspection by an authoritative classification society signifies—above all—enhanced safety, reliability, and the capability to gain access to international projects.

II. What is a Crossed Roller Slewing Bearing?

1. Structural Definition

A Crossed Roller Slewing Bearing is a type of high-load-capacity roller slewing bearing in which the rollers are arranged in a 90-degree crisscross pattern within the raceway. These rollers establish linear contact with the raceway—resulting in a contact area significantly larger than that of spherical rolling elements—and each roller alternately bears loads from different directions. This design enables the bearing to simultaneously withstand axial loads, radial loads, and overturning moments. Crossed roller slewing bearings are widely utilized in high-precision and high-rigidity applications, such as cranes, excavators, rotary tables, and marine vessels.

2. Advantages of Roller-Type Slewing Bearings Compared to Ball-Type Slewing Bearings

When compared to four-point contact ball slewing bearings, the crossed-roller structure offers distinct advantages in terms of rigidity and load-bearing capacity:

Higher Load Capacity: Roller rolling elements establish linear contact with the raceway, whereas spherical rolling elements establish point contact. Since the contact area of rollers is far greater than that of steel balls, the bearing possesses a higher rated load capacity for a given size.

Higher Rigidity: The crossed-roller arrangement creates a more compact and stable overall structure, making it ideal for heavy-duty rotary equipment such as excavators, cranes, tunnel boring machines (TBMs), wind turbines, ball mills, and stacker-reclaimers.

Reduced Deformation: Under heavy-load operating conditions, the roller structure effectively minimizes elastic deformation, thereby enhancing rotational precision.

Extended Service Life: Under conditions of proper lubrication and sealing, crossed roller bearings exhibit a significantly longer fatigue life.

Consequently, the Crossed Roller Slewing Bearing stands as a premier choice for marine engineering equipment, large-scale cranes, precision rotary tables, and heavy machinery.

III. Introduction to the Large-Diameter Bearing Project Recently Certified by CCS at LTZC

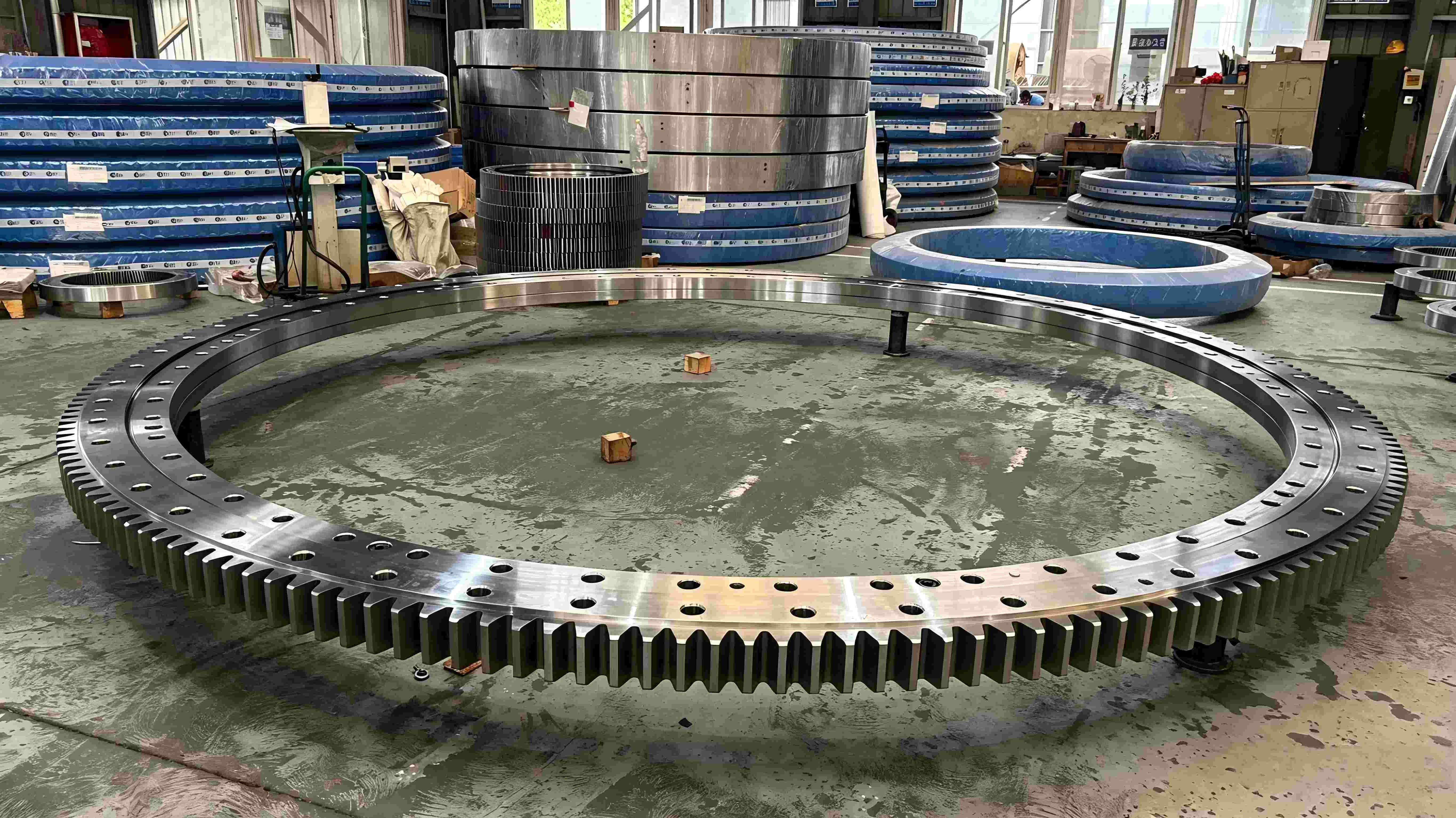

The product that recently passed CCS inspection is a large-diameter crossed-roller slewing bearing manufactured by LTZC. This high-performance bearing was custom-engineered for a major European shipbuilding manufacturer and is specifically designed for applications within the marine equipment sector. The product features the following characteristics:

1. Large-Scale Structural Design

The diameter of this bearing places it in the category of components suitable for large-scale machinery, capable of meeting the installation requirements for marine deck equipment and heavy-duty rotating platforms. Given its substantial dimensions, the manufacturing process presents significant challenges—including the difficulty of controlling roundness, the high risk of thermal deformation during heat treatment, and, most critically, the maintenance of precision. Drawing upon extensive experience in the production of large-diameter bearings, LTZC utilizes specialized processing equipment for various sizes and employs a mature, comprehensive process control system. With a product range spanning diameters from 200 mm to 13,000 mm, LTZC maintains rigorous control over every stage of production and processing to deliver slewing bearings that meet the highest industry standards.

2. Design for Heavy-Duty Operating Conditions

To address the high-load and high-impact characteristics inherent in offshore equipment applications, LTZC has implemented structural optimizations. These enhancements include increasing the number of rollers, optimizing raceway angles, and reinforcing cage stability, thereby ensuring that the slewing bearing operates with exceptional stability, even when subjected to maximum load capacities.

3. Corrosion-Resistant Design

Marine-grade crossed-roller slewing bearings must withstand the complex and harsh conditions of the ocean environment—including salt spray corrosion, temperature fluctuations, and prolonged wind-load impacts. To address these challenges, LTZC employs advanced surface protection treatments and optimized sealing designs to significantly enhance the durability and longevity of the product.

Send an inquiry to LTZC bearings

IV. How LTZC Ensures Large Crossed Roller Slewing Bearings Successfully Pass CCS Inspection

1. Raw Material Source Control: LTZC utilizes high-quality alloy steel materials to ensure that strength meets required standards and that heat treatment stability is maintained.

2. Precision Raceway Machining: As the raceway constitutes the core area determining bearing service life, LTZC employs high-precision equipment to strictly control surface roughness, roundness, and dimensional consistency.

3. Heat Treatment Process Optimization: Through advanced quenching and tempering processes, LTZC achieves a high-hardness, wear-resistant surface layer while simultaneously enhancing crack resistance.

4. Assembly and Preload Adjustment: The assembly of crossed roller bearings demands extremely high precision; LTZC exercises rigorous control over cage clearance and axial clearance.

5. Comprehensive Factory Testing: Prior to shipment, every large bearing unit undergoes a comprehensive series of tests, including rotation testing, clearance measurement, seal inspection, and visual inspection

V. LTZC: Core Manufacturing Advantages as a Professional Slewing Bearing Supplier

1. Large-Diameter Bearing Processing Capabilities

LTZC specializes in the manufacturing of large-scale slewing bearings, capable of producing a wide variety of bearing products in various sizes, structural configurations, and types. These products are suitable for applications in port machinery, marine cranes, offshore platforms, wind power equipment, construction machinery, and other fields. The company possesses comprehensive capabilities in large-scale turning, gear hobbing, heat treatment, grinding, and assembly.

2. Extensive Experience with Crossed Roller Bearings

With over 30 years of bearing manufacturing expertise, LTZC has successfully resolved complex bearing challenges across diverse industries. Crossed roller slewing bearings demand manufacturing precision far exceeding that of standard bearing structures; LTZC possesses mature manufacturing experience and extensive technical know-how specifically tailored to these advanced requirements.

3. Rigorous Quality Management System

LTZC implements comprehensive, end-to-end quality control throughout the entire production process—encompassing raw material traceability, first-piece inspection, in-process patrol inspection, final product inspection, and support for third-party acceptance testing—thereby ensuring the superior quality of its slewing bearings.

The Application Value of LTZC Heavy-Duty Roller Bearings in the Maritime Industry

Large-scale crossed roller slewing bearings are, by nature, high-end heavy-duty roller bearings that perform critical functions within the maritime sector.

1. Marine Deck Cranes: Used for hoisting cargo, spare parts, containers, and engineering equipment; these applications demand high load-bearing capacity, shock resistance, and a low failure rate.

2. Offshore Platform Cranes: Operating in dynamic offshore environments characterized by fluctuating wind and wave conditions, the bearings must demonstrate exceptional stability to withstand constantly changing loads.

3. Shipborne Radar Turntables: These applications require smooth rotation, precise positioning, and a long operational lifespan.

4. Port Handling Equipment: Large-scale gantry cranes and quay cranes operate at high frequency over extended periods, necessitating the support of highly reliable slewing systems.

VI. LTZC Customized Marine Bearings

LTZC’s large-scale Crossed Roller Slewing Bearings have successfully passed CCS inspection. This achievement represents not merely a milestone in quality certification, but also a testament to the company’s comprehensive competitiveness in the fields of marine bearings, heavy-duty roller bearings, and high-end slewing bearing supply.

In the future markets for the shipbuilding industry, port machinery, offshore engineering, and heavy equipment, LTZC will continue to leverage its reliable quality, professional expertise, and customized services to provide global clients with high-performance solutions for large-scale slewing bearings.
