LTZC Thin-Section Deep Groove Ball Bearings: High-Load, Low-Friction Performance in Robotics

I.Common Challenges Faced by Robotic Bearings

Limited installation space, where conventional bearings have excessively thick cross-sections;

High frictional resistance during high-speed operation;

Significant temperature rise caused by frequent start-stop cycles;

Degradation of precision after prolonged, continuous operation;

Difficulty in balancing high load-bearing capacity with the demand for lightweight design.

To address these industry pain points, LTZC has introduced a series of high-performance Thin-Section Deep Groove Ball Bearings. Centered on the core advantages of "high load capacity, low friction, lightweight design, and high precision," these products provide the robotics industry with more reliable bearing solutions.

II. What Are Thin-Section Deep Groove Ball Bearings?

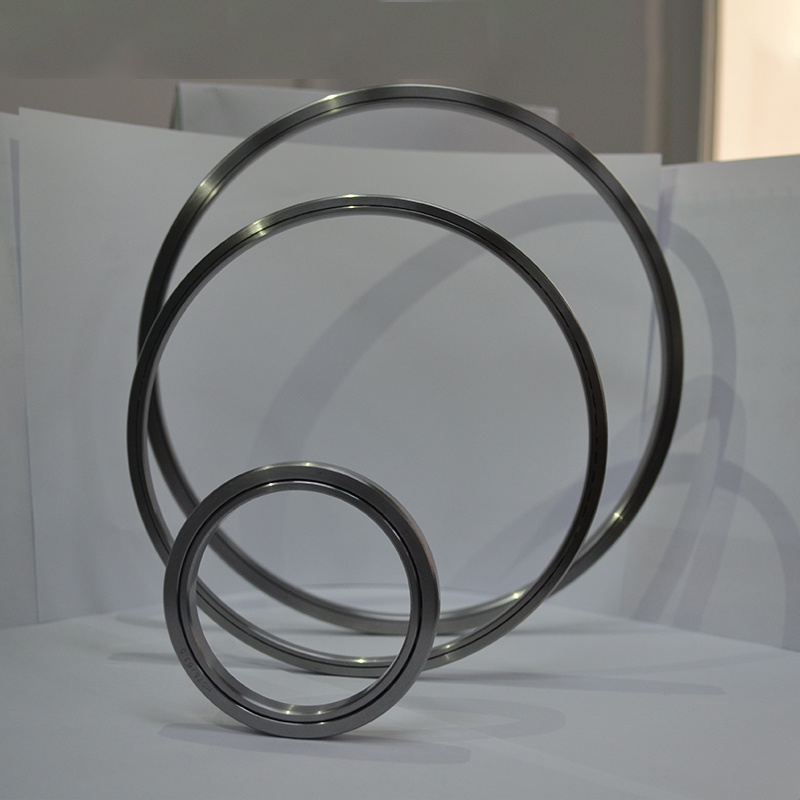

Thin-Section Deep Groove Ball Bearings are lightweight bearings characterized by extremely thin walls and compact cross-sectional dimensions; they are capable of supporting both radial and axial loads. Compared to traditional bearings, they feature a smaller radial cross-section, lighter weight, and superior space utilization.

Features of Thin-Section Deep Groove Ball Bearings

Deep-groove raceway design, suitable for supporting radial loads as well as bidirectional axial loads;

Thin-wall structure reduces overall weight;

Uniform wall thickness across both inner and outer rings ensures stable operation;

Capable of supporting high-speed rotation;

Low friction torque, resulting in significant energy savings;

Enables high-precision assembly.

Applications of Thin-Section Deep Groove Ball Bearings

Industrial Robot Joints

Collaborative Robot Rotary Modules

SCARA Robot Rotary Axes

AGV Drive Wheel Systems

Medical Robot Actuators

Automated Conveying Equipment

Precision Inspection Equipment

III. Why Does the Robotics Industry Require High-Performance Deep Groove Ball Bearings?

Robotic equipment operates in complex environments, placing demands on bearings that are far more rigorous than those for standard mechanical machinery. Particularly in multi-axis linkage systems, even the slightest error can compromise the overall performance of the entire machine.

1. High Precision Requirements

Robots typically require a repetitive positioning accuracy of ±0.02 mm or even higher. Bearing clearance, runout, and friction fluctuations can all negatively impact end-point accuracy. LTZC’s thin-section deep groove ball bearings undergo a strictly controlled, high-precision grinding process to ensure more stable motion trajectories for robotic systems.

2. High-Frequency Start-Stop Requirements

Robots often operate continuously around the clock, executing a large number of start-and-stop cycles every minute. Under such conditions, bearings are prone to issues such as overheating, increased noise levels, and lubrication failure. LTZC bearings feature a low-torque design combined with high-performance lubrication solutions, significantly enhancing their capability for sustained, continuous operation.

3. Compact Space Requirements

The internal mechanisms of robotic joints are highly integrated and complex, leaving extremely limited space available for bearings; consequently, thin-section deep groove ball bearings emerge as the ideal choice for these applications.

IV. Application Case Studies of LTZC Thin-Section Deep Groove Ball Bearings in the Robotics Industry

Case Study 1: Industrial Robot Joint Bearing Upgrade Project

Customer Pain Points

An industrial robot—manufactured by a certain automation equipment integrator—began exhibiting multiple malfunctions eight months after being put into operation. During high-speed reciprocating movements of the robot joints, bearing noise steadily intensified, resulting in distinct abnormal sounds during operation. Simultaneously, bearing wear led to increased joint clearance, causing the equipment's repetitive positioning error to rise continuously and resulting in precision drift, which compromised the machining accuracy of workpieces. Furthermore, under high-speed operation, bearing friction generated severe heat, causing excessive temperature rise within the equipment; this not only limited operational efficiency but also significantly reduced the overall service life of the joint modules. Consequently, the equipment required frequent downtime for maintenance, negatively impacting the production line's overall capacity.

LTZC Solution

Tailoring its approach to the specific operating conditions of industrial robot joints—characterized by high speed, high frequency, and high precision—LTZC customized a specialized thin-section deep groove ball bearing for the client. This solution features a P5 precision grade, with strict controls over bearing runout and coaxiality to ensure the positioning accuracy of the joints. It is paired with a specialized low-torque grease to minimize frictional resistance during operation, thereby reducing heat generation and abnormal noise. The design incorporates a non-contact sealing structure to eliminate frictional losses, making it ideally suited for high-speed rotational environments. Additionally, it is equipped with a proprietary high-speed cage, enhancing bearing stability during rapid rotation and preventing issues such as jamming or vibration.

Project Outcomes

Following the equipment upgrade with LTZC's customized bearings, overall operational performance improved significantly: The equipment's overall temperature rise was reduced by 18%, completely resolving the overheating issues associated with high-speed operation. Operational noise levels dropped by 22%, creating a superior working environment within the workshop. The overall service life of the bearings was extended to more than double their original duration. Furthermore, the repetitive positioning accuracy of the robot joints consistently met required standards—effectively resolving the precision drift issues—and significantly reduced the likelihood of equipment downtime for maintenance, thereby ensuring the continuous and efficient operation of the automated production line.

Case Study 2: AGV Drive Wheel System Upgrade Project

Client Pain Points

AGV handling robots are designed for continuous, uninterrupted 24-hour operation. Consequently, the bearings within their drive wheels are constantly subjected to continuous rotation, minor impact loads, and dusty environments—conditions that impose extremely high demands on bearing load-bearing capacity, wear resistance, and service life. The client's original bearings suffered from poor wear resistance and inadequate dust-proofing capabilities. After prolonged operation, they were prone to issues such as excessive wear, seizing, and intermittent stalling, resulting in a high equipment failure rate, short bearing replacement cycles, and persistently high overall costs for maintenance and spare parts.

LTZC Solution

Addressing the critical challenges associated with the AGVs' continuous heavy-load operation, complex working environments, and frequent maintenance requirements, LTZC engineered a solution for the drive wheel systems utilizing high-load-capacity deep groove ball bearings. This design enhances the structural rigidity of the bearings while significantly boosting their resistance to both impact and wear. Furthermore, the bearings are equipped with a high-strength dust-sealing structure designed to effectively isolate the interior from workshop dust and fine contaminants, thereby preventing the wear and seizing issues typically caused by impurity ingress. Finally, the solution incorporates a long-lasting, stable lubrication system featuring grease with strong adhesion properties that resists loss and degradation; this system is specifically tailored to the equipment's demanding, round-the-clock operating conditions, ensuring consistently smooth bearing transmission over extended periods.

Project Outcomes

Following the bearing upgrade, the operational stability of the AGV drive systems improved significantly, leading to a substantial reduction in the equipment's annual failure rate. The service life of the bearings was extended, effectively lengthening the interval between spare parts replacements. This outcome reduced labor costs associated with frequent disassembly and maintenance, as well as the procurement costs for replacement parts. Ultimately, the project achieved a comprehensive reduction in the client's overall equipment maintenance and operational expenditures, while simultaneously boosting the efficiency of automated material handling operations throughout the facility.

V. Thin-Wall Bearing Supplier — LTZC Bearings

LTZC specializes in the R&D and custom manufacturing of thin-wall precision bearings, focusing deeply on high-end precision sectors such as robotics, industrial automation, and intelligent medical equipment. Leveraging mature precision machining processes, a rigorous quality control system, and scenario-specific customization capabilities, we provide clients with OEM solutions for thin-wall deep groove ball bearings that feature high precision, low noise, extended service life, and exceptional compatibility. Compared to general-purpose standard bearings, LTZC products offer superior precision stability, lower temperature rise during high-speed operation, enhanced sealing protection, and outstanding durability. They serve as a perfect substitute for imported precision bearings, effectively helping clients reduce costs, boost efficiency, stabilize equipment quality, and optimize their supply chains. LTZC is a premier supplier of thin-wall bearings for high-end precision equipment.
