Three-Row Cylindrical Roller Slewing Bearing for Cranes | LTZC Heavy Duty Bearing Manufacturer

I. Common Issues with Customer Crane Slewing Bearings

The client in this case study is a European manufacturer of heavy-duty cranes, specializing in the production of crawler cranes with a lifting capacity exceeding 300 tons. In practical applications, the client encountered the following challenges:

Insufficient load-bearing capacity of the slewing bearing, leading to a susceptibility to plastic deformation;

Severe wear on the raceways under high-intensity operating conditions;

Short service life and high maintenance costs;

The inability of traditional four-point contact ball structures to meet the demands of extreme loads.

Consequently, the client urgently required a heavy-duty bearing solution to enhance equipment reliability and reduce long-term operation and maintenance costs.

II. Solution: LTZC Three-Row Cylindrical Roller Slewing Bearing

To address the issues encountered by clients regarding insufficient load-bearing capacity, severe raceway wear, and premature service life in crawler cranes exceeding 300 tons, the LTZC engineering team conducted on-site load spectrum acquisition and Finite Element Analysis (FEA). Based on these findings, they ultimately recommended the adoption of the Three-Row Cylindrical Roller Slewing Bearing. This type of slewing bearing boasts the highest load-bearing capacity and maximum rigidity among all slewing bearing designs, making it ideally suited for heavy-duty equipment such as large-tonnage cranes, offshore cranes, large excavators, stacker-reclaimers, and gantry cranes.

Why Choose a Slewing Bearing with a Three-Row Roller Structure?

The Three-Row Cylindrical Roller Slewing Bearing has become the preferred choice for heavy-duty operating conditions primarily due to its unique design. The three rows of rollers are configured to independently bear loads acting in different directions: the upper row of rollers independently supports axial loads; the lower row of rollers independently supports reverse axial loads; and the middle row of rollers independently supports radial loads.

Technical Advantages of LTZC Three-Row Roller Slewing Bearings

The three rows of rollers operate independently, thereby achieving load separation and preventing localized stress concentrations that can result from the superposition of loads acting in different directions. Compared to the four-point contact ball structure, this design offers a 2–3 fold increase in load-bearing capacity, significantly enhancing the rotational stability of the entire machine.

This design has been validated against ISO 76 (Static Load Capacity) and ISO 281 (Life Calculation) standards. Furthermore, it successfully completed over 5 million cycles of dynamic load testing on LTZC’s internal fatigue test rig without exhibiting any signs of raceway spalling.

2.1 High-Rigidity Raceway Design

The raceways undergo a medium-frequency induction hardening process, achieving a surface hardness of HRC 55–62 and a hardened layer depth of ≥4 mm. The raceway curvature and contact angles are independently optimized by LTZC, ensuring optimal conformity between the rolling elements and the raceways, thereby reducing contact stress.

LTZC Bearing Technical Advantages:

High hardness + Deep hardened layer + Optimized contact geometry → Significant resistance to plastic deformation and fatigue spalling, resulting in a 50%–100% increase in actual service life. LTZC’s raceway heat treatment process complies with ISO standards, and bearing inspection reports are provided.

2.2 High-Precision Gear Ring- Crane Slewing Ring

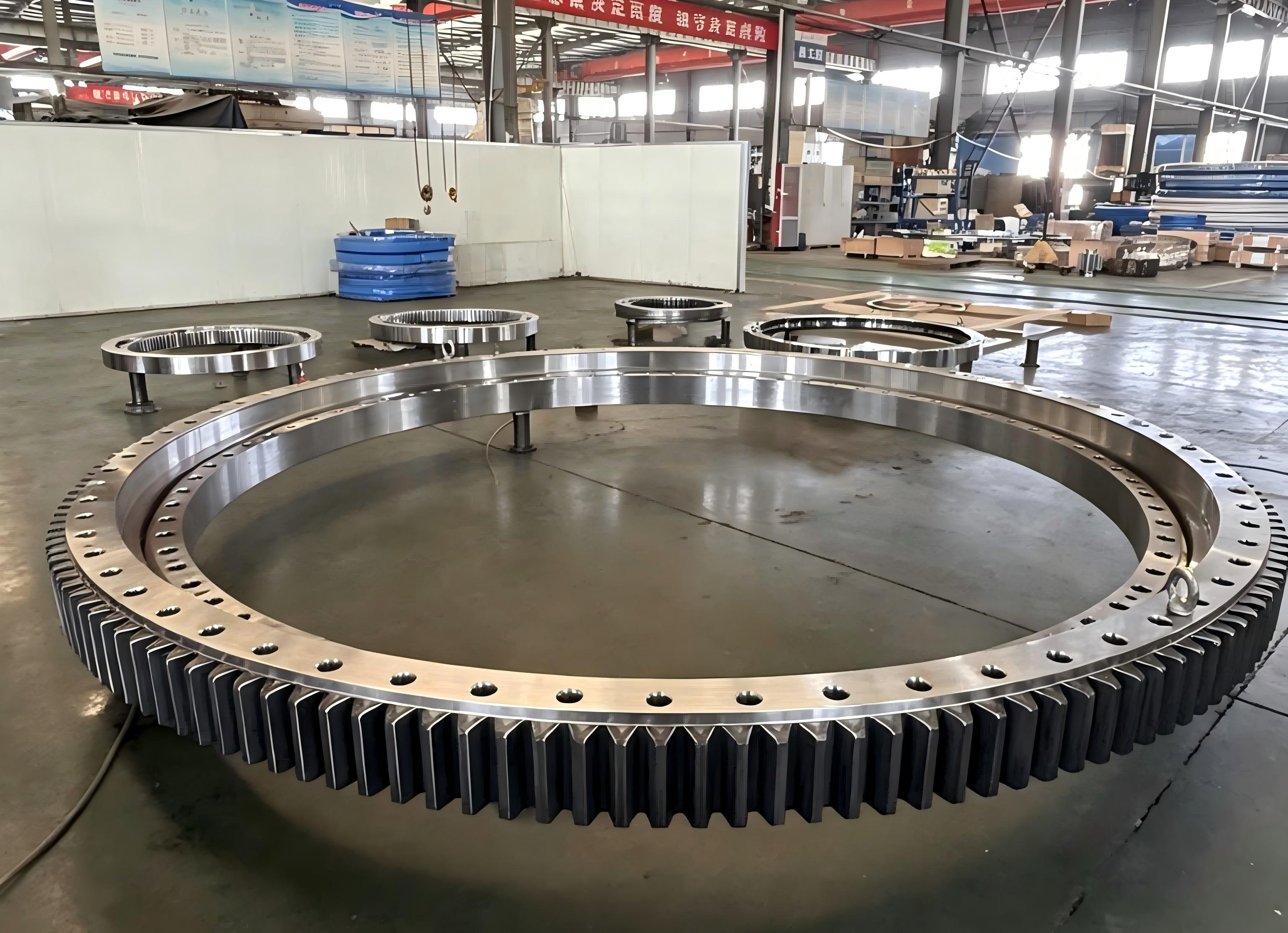

Leveraging over 30 years of experience in bearing R&D and manufacturing, LTZC stands as a leading manufacturer of slewing bearings in China. We offer customizable designs featuring external gearing, internal gearing, or gearless structures. The gear tooth surfaces achieve a hardness of HRC 50–55, with gear precision reaching ISO Grade 7.

Prior to shipment, every LTZC bearing gear ring undergoes a comprehensive inspection covering tooth profile, tooth direction, and pitch deviation. Gear inspection reports are provided to ensure full compliance with the EN 13001 safety standards applicable to our customers' crane systems.

2.3 Modular Customized  Bearings

In addition to its standard product line, LTZC offers comprehensive capabilities for the design and manufacture of customized bearings:

Size Range:  Diameters ranging from 300 mm to 12,000 mm, covering equipment sizes from small-to-medium scale up to ultra-heavy-duty machinery.

Material Options: High-purity alloy steels  with material grades upgradable upon customer request.

Bearing Sealing: Single-layer, double-layer, or heavy-duty labyrinth seals, designed to withstand high-dust and high-humidity environments typical of mining operations, ports, and similar industrial settings.

Corrosion Protection:Zinc-chromium coating / Epoxy primer + Polyurethane topcoat / Stainless steel raceways (optional).

✅ LTZC Technical Advantages:

Customers can obtain slewing bearings that are perfectly matched to their specific operating conditions—without the need to alter their existing equipment structure—thereby minimizing installation errors and the risk of premature failure right from the source. LTZC holds ISO 9001:2015 Quality Management System certification; all customized products undergo rigorous 3D modeling and Finite Element Analysis (FEA) for stress analysis, and detailed design calculation reports are provided to the customer.

The LTZC Three-Row Cylindrical Roller Slewing Bearing is far more than just "bigger and heavier"; it represents a systematic heavy-duty solution grounded in precise load calculations, optimized heat treatment, and high-precision manufacturing. For crane manufacturers and end-users seeking a low total cost of ownership, this constitutes a reliable investment that sustainably reduces maintenance expenditures and enhances equipment uptime.

📞 Contact the LTZC technical team today to receive recommendations on three-row roller structure selection—along with a service life estimation report—tailored specifically to your crane model.

III. LTZC Crane Slewing Ring Performance——Three-Row Cylindrical Roller Slewing Bearing

After the installation of this LTZC three-row cylindrical roller slewing bearing on a client's 300-ton crawler crane, and following 12 months of continuous, high-intensity field operations, our technical team conducted two rounds of scheduled inspections and data collection.

1. Significantly Enhanced Load-Bearing Capacity

Deformation Control under Rated Load: Compared to the original solution, the LTZC three-row roller structure—under an identical overturning moment—reduced the maximum plastic deformation of the raceway by approximately 60%.

Actual Load-Bearing Capacity Improvement: Based on field load feedback, the maximum safe working load achievable by the client increased by approximately 40% compared to previous levels.

Raceway Condition: Upon disassembly and inspection after 12 months of operation, the raceway surface exhibited no spalling or indentations caused by foreign objects, and contact patterns appeared uniform.

2. Enhanced Operational Stability and Safety

Following the installation of the LTZC three-row cylindrical roller slewing bearing, the shock and vibration associated with slewing startup and braking were noticeably reduced; furthermore, no shaking or noise was observed during heavy-load slewing operations. A remeasurement of the slewing clearance after 12 months of operation revealed that it remained superior to the factory-specified clearance value of the original bearing when it was brand new.

3. Significantly Reduced Maintenance Costs

Extended Lubrication Intervals: The original solution required grease replenishment every 200 hours; however, thanks to the optimized sealing structure of the LTZC bearing, the lubrication interval has been extended to 500 hours, resulting in a 60% reduction in grease consumption. Additionally, the service life of the slewing bearing has been extended to 3–5 years, leading to a 40% reduction in overall maintenance costs.

IV. Why Choose LTZC as Your Slewing Bearing Manufacturer?

LTZC is a manufacturer and technical solutions provider specializing in heavy-duty, customized, and long-life slewing bearings.

1. Robust Production Capabilities for Ultra-Large Specifications

Diameter Range: 300 mm – 12,000 mm. LTZC has successfully delivered an ultra-large diameter slewing bearing (12,000 mm) to a Korean client. Our product range covers everything from compact equipment to the world's largest-tonnage cranes, tunnel boring machines (TBMs), and offshore platform cranes. We offer customized solutions regarding bearing structure (internal gear, external gear, or gearless), material grades, anti-corrosion treatments, lubrication systems, and sealing mechanisms.

2. Rigorous Quality Management System

ISO 9001:2015 Certified: We maintain a comprehensive quality management system covering design, procurement, production, inspection, and delivery. This ensures that every slewing bearing meets international standards and is accompanied by fully traceable quality certification documentation.

3. Extensive Experience in Industry Applications

LTZC products have been successfully and reliably deployed in the following heavy-duty sectors requiring high reliability:

🏗️ Cranes (Slewing Rings): Crawler cranes, tower cranes, gantry cranes, and truck cranes.

⛏️ Mining Machinery: Large excavators, stacker-reclaimers, and rotary blast hole drills.

🌊 Marine Engineering: Offshore cranes and platform cranes.

💨 Wind Power Equipment: Yaw bearings and pitch bearings.

🚜 Construction Machinery: Concrete pump trucks, aerial work platforms, and tunnel boring machines (TBMs).

4. Rapid Response and Delivery Capabilities

Standard Products: Common specifications ranging from 200 mm to 13,000 mm in diameter can be shipped within 15–25 days.

Customized Products: Three-row roller bearings or ultra-large diameter slewing bearings have a lead time of 6–10 weeks, depending on complexity.

Technical Response: Upon receiving a client's load conditions and operational requirements, we provide preliminary product selection recommendations and technical drawings within 48 hours.
