Customized 5070mm Large Slewing Bearing Completed and Delivered

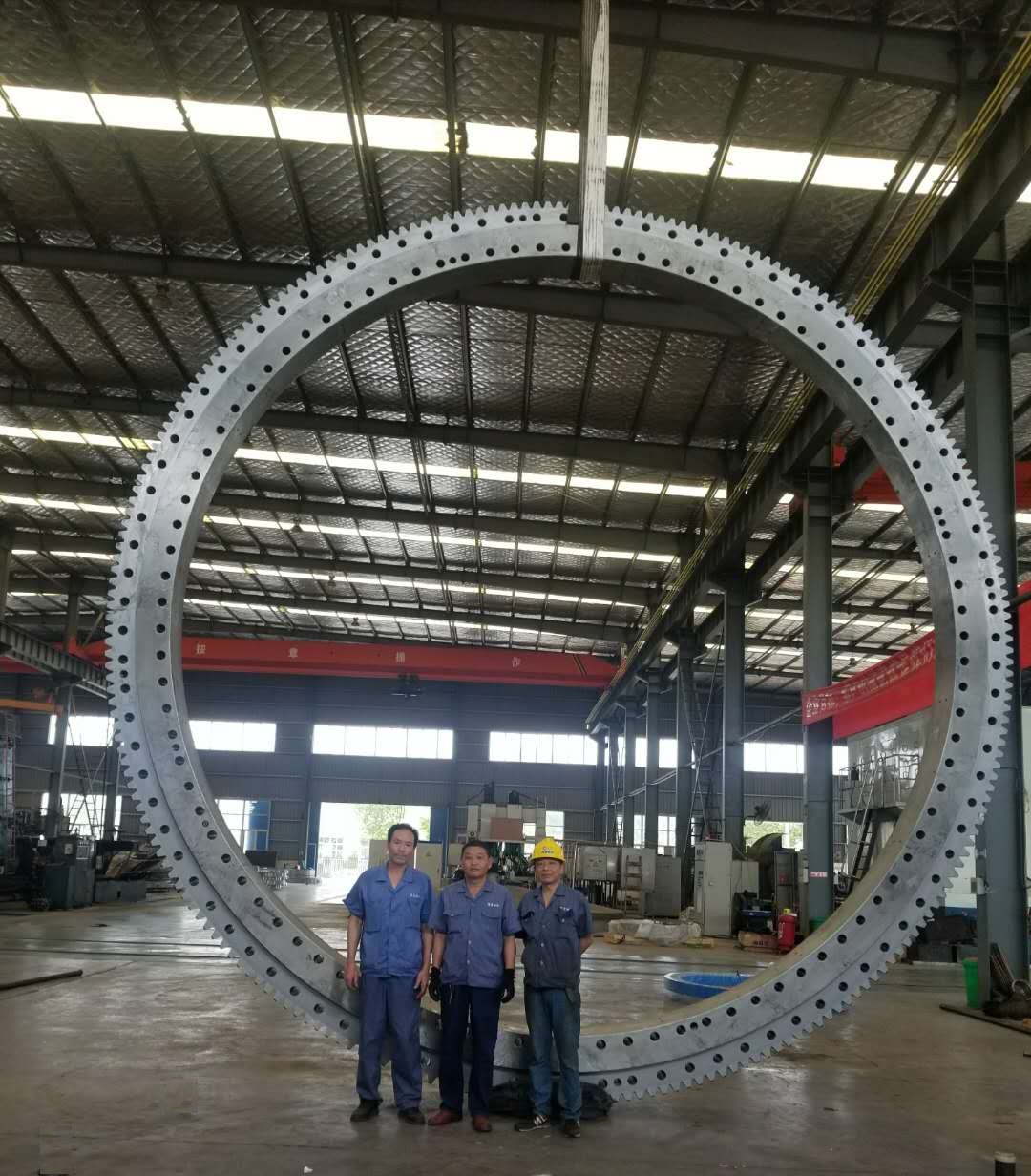

LTZC, a company with over thirty years of expertise in manufacturing high-end, heavy-duty bearings, recently successfully delivered a custom-engineered large slewing bearing for a 360-ton ladle turret at the Xinyu Steel Plant. With an outer diameter of Φ5070mm, this custom-made turntable bearing sets a new size record for this category of specialized bearings in China. It features an industry-leading three-row cylindrical roller design, specifically engineered to withstand the harsh operating conditions of steel smelting workshops—including high-temperature radiation, alternating impact loads, metal dust exposure, and the stresses of low-speed, heavy-load start-stop cycles. The bearing is capable of enduring the complex axial loads, radial loads, and massive overturning moments associated with the long-term, fully loaded operation of a 360-ton ladle.

The successful deployment of this ultra-large diameter slewing bearing marks a significant technological upgrade for LTZC in the areas of R&D for oversized custom bearings, process optimization for heavy-duty metallurgical turntable bearings, and the provision of comprehensive, customized bearing solutions for heavy equipment.

I. Why Ladle Turntables Require Custom Slewing Bearings

1.1 Extreme Heavy Loads and Frequent Impact/Overturning Moments

LTZC customized a three-row roller slewing bearing for this steel plant, capable of supporting a rated load of 360 tons. Standard, off-the-shelf large slewing bearings are generally designed for uniform, stable loads; subjecting them to heavy loads causes fatigue damage, leading to equipment downtime.

1.2 Continuous High-Temperature Radiant Environment

Steel plants operate in high-temperature environments, and the equipment itself generates significant heat during operation. The outer ring of the critical slewing bearing often operates in the 180°C–450°C range, placing extreme demands on the bearing's materials, manufacturing processes, and lubrication.

1.3 Corrosion and Wear Caused by Dust, Iron Oxide Debris, and Cooling Water

Steelmaking generates continuous debris, such as iron oxide dust and steel slag. If the slewing bearing's sealing structure is inadequate, hard particles can penetrate the bearing, causing abrasive wear and premature failure.

1.4 Non-Standard Installation Dimensions and Drive Structures

Every steel plant has unique specifications regarding continuous casting machine brands, ladle tonnages, turntable base structures, drive gear locations, bolt hole patterns, and lubrication line layouts. Standardized mass-produced bearings rarely fit the equipment base perfectly, and modifying the base is costly; therefore, steel plants require manufacturers capable of providing comprehensive, customized bearing solutions.

II. Customized Bearings for 360-Ton Ladle Turret

These customized bearings, delivered to Xinyu Steel Plant, feature an independent three-row cylindrical roller load-bearing structure with an outer diameter of 5070mm. The three rows of rollers are assigned to handle loads from different directions, making this the preferred structural configuration for heavy-duty ladle turrets with capacities exceeding 300 tons.

Upper cylindrical rollers: Bear the massive downward axial load (the gravity of the ladle assembly);

Lower cylindrical rollers: Bear reverse axial forces, countering reaction forces caused by start-stop shocks and eccentric loads; the upper and lower rows of horizontal rollers form a moment arm to resist extreme overturning moments;

Middle cylindrical rollers: Specifically handle lateral radial loads, counteracting vibrations from ladle eccentricity and lateral impact forces on the steel structure.

LTZC implemented several structural customizations and upgrades tailored to Xinyu Steel Plant's specific operating conditions:

Widened raceway contact width to distribute impact loads;

Optimized roller spacing and split-type spacers to prevent roller skewing or jamming;

Multi-layer labyrinth seals to prevent iron oxide dust and cooling water from entering the internal cavity;

Incorporated multiple independent lubrication channels to allow for zone-specific injection of high-temperature, metallurgy-grade grease;

Customized bolt hole layout, flange thickness, and mounting surface precision based on the steel plant's base drawings;

Deep-quenched the outer ring gear teeth to ensure reliable, long-term meshing with the turret drive gear.

III. LTZC Comprehensive Solutions for Customized Large Slewing Bearings

Customized Load Analysis and Operating Condition Assessment

Engineers perform load verification and simulations based on equipment parameters, on-site operating conditions, blueprints, or measurements of existing parts to select the optimal large slewing bearing structure.

Fully Customized Non-Standard Dimensions

Outer diameter, bolt hole patterns, flange thickness, gear specifications, and internal clearance can all be customized to produce a turntable bearing that fits the existing equipment base, eliminating the need to modify the original steel structure.

Application-Specific Materials and Heat Treatment

Steel grades are selected and customized induction hardening and surface wear-resistance processes are applied to withstand harsh environments—such as high temperatures, heavy impacts, dust, and salt spray—thereby extending the bearing's service life.

Customized Sealing and Lubrication Systems

Configurations include double-layer labyrinth seals and high-temperature resistant seals, along with dedicated lubrication channels, ensuring suitability for demanding sectors like metallurgy, mining, and offshore engineering.

Customized Precision and Drive Mechanisms

Precision grades ranging from P0 to P5 are available, supporting various drive configurations (external gear, internal gear, or gearless) to suit applications ranging from light industrial machinery to heavy-duty metallurgical equipment.

Comprehensive, One-Stop Technical Support

Services cover the entire project lifecycle—including model selection, production quality control, protective packaging for export, installation guidance, maintenance manuals, and long-term spare parts supply—ensuring full support for the customized turntable bearing project.

FAQ: Frequently Asked Questions About Procurement

Q1: Why is the three-row cylindrical roller slewing bearing the preferred choice for ladle turrets?

A: The three-row roller structure offers high load-bearing capacity and superior rigidity, making it ideally suited for the demanding operating conditions of steel plant ladle turrets; it is also the mainstream structural design for ultra-high-tonnage continuous casting turntable bearings in China.

Q2: Can LTZC manufacture custom bearings based on my equipment drawings?

A: Absolutely. Our engineers can work with customer-provided 3D drawings, operating parameters, or physical measurements from existing bearings to create custom designs—tailoring dimensions, sealing, materials, and gear profiles for equipment such as steel mill machinery, tunnel boring machines (TBMs), and port machinery.

Q3: Can your large slewing bearings obtain certification from classification societies like BV or CCS?

A: Yes, LTZC’s full range of heavy-duty bearings holds internationally recognized certifications, including ISO9001, BV, CCS, RINA, and ABS.

Q4: How can the service life of ladle turret bearings be extended in the high-temperature, dusty environments of steel plants?

A: LTZC accounts for on-site environmental conditions during the custom design process, incorporating specialized sealing and lubrication systems; we also provide comprehensive installation and maintenance manuals with every delivered bearing.

Q5: What are LTZC’s core competitive advantages compared to other slewing bearing manufacturers?

A: Over 30 years of integrated manufacturing and trading experience, in-house large-scale CNC machining capabilities, one-stop custom bearing solutions, and full-lifecycle support covering installation guidance and after-sales service.
