Application of LTZC single row ball slewing bearings in automated equipment

Against the backdrop of rapid development in Industry 4.0 and intelligent manufacturing, the performance requirements for core transmission components in automated equipment are constantly increasing. As a key rotating support component, slewing bearings perform multiple functions in automation systems, including load bearing, positioning, and rotational drive. In particular, the compact and stable single-row ball slewing bearing has become the preferred solution for many high-end automated equipment.

As a professional slewing bearing manufacturer, LTZC has focused on the research and development and manufacturing of slewing rings and customized slewing bearings for many years, accumulating rich application experience in the automation field. This article will systematically analyze the structural characteristics, application scenarios, and LTZC's solutions in the automation industry for single-row ball slewing bearings.

I. Demands for Slewing Bearings in the Automation Field

As automated eqipment develops towards higher speeds, greater precision, and modularity, stringent requirements are placed on the performance of slewing bearings. Not only must the load-bearing capacity of the bearings be considered, but also their precision. Automation systems place the following core demands on slewing bearings:

1. High-Precision Rotational Positioning

In equipment such as robot turntables, laser processing platforms, and automated sorting systems, slewing rings not only bear radial and axial loads but also perform high-precision positioning rotations. Therefore, backlash control, rotational runout accuracy, and gear ring machining accuracy become key indicators.

2. Compact and Lightweight Design

Automated equipment emphasizes space utilization. Single-row ball slewing bearings employ an integrated design, achieving high load-bearing capacity and high-precision positioning within a limited space.

3. Capability to Withstand Multi-Directional Composite Loads

Automated equipment typically experiences the superposition of axial loads, radial loads, and overturning moments. High-quality slewing bearings must be able to withstand three-dimensional loads simultaneously.

4. Stability and Lifespan Guarantee

Automated production lines typically operate continuously, placing higher demands on the fatigue life, material stability, and lubrication system of slewing bearings.

In this context, single-row ball slewing bearings, due to their structural advantages, have become one of the most widely used slewing ring types in the automation field.

II. What is a Single-Row Ball Slewing Bearing?

(I) Slewing Bearing Structure

A single-row ball slewing bearing is a typical four-point contact structure. Its rolling elements and raceways form a four-point contact structure, capable of simultaneously bearing axial force, radial force, and overturning moment. Its basic components are: inner ring, outer ring, single row of steel balls, cage, sealing device, and gear ring (optional: external gear, internal gear, or toothless).

Depending on application requirements, the slewing ring can be designed as:

External gear slewing bearing

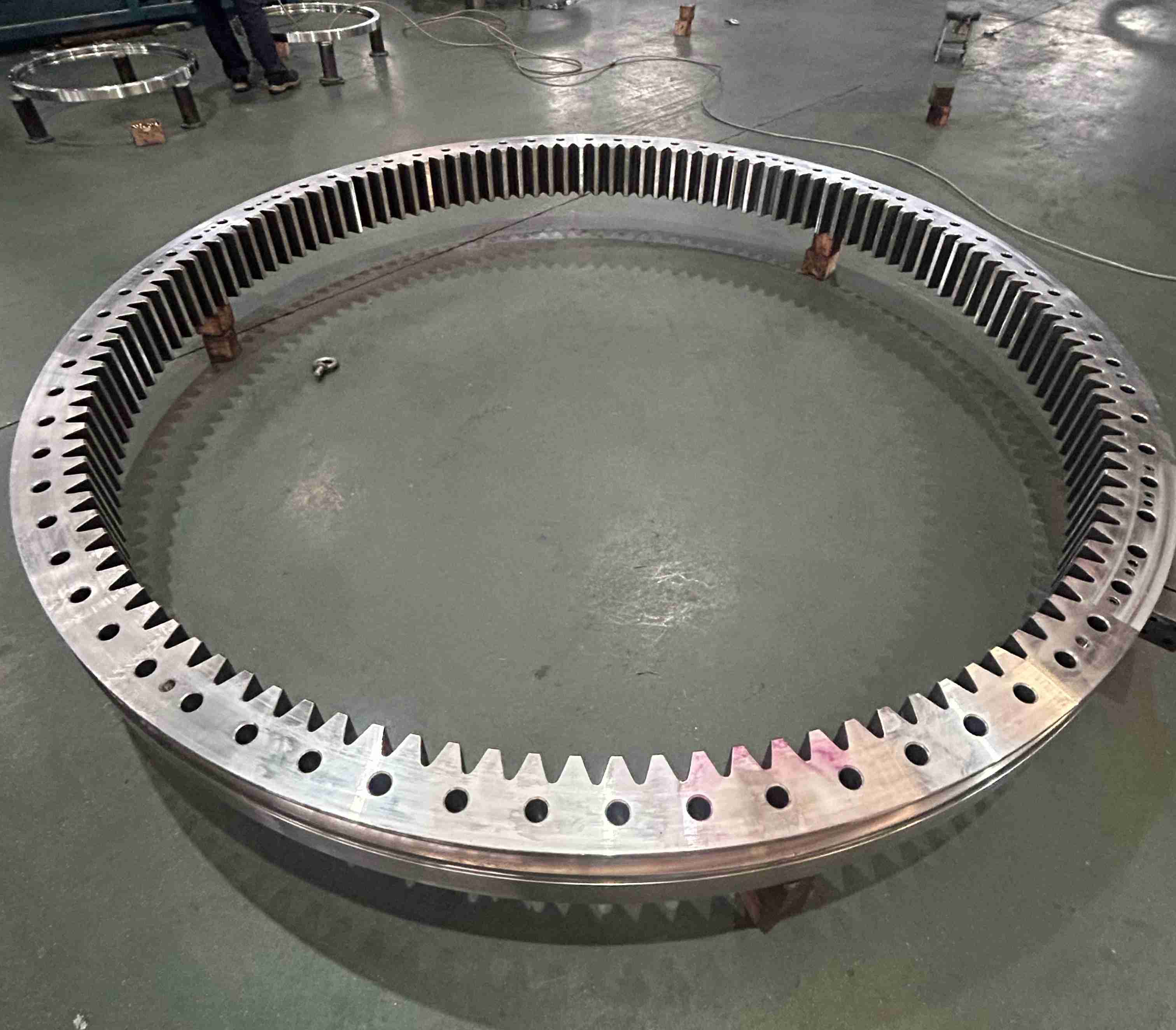

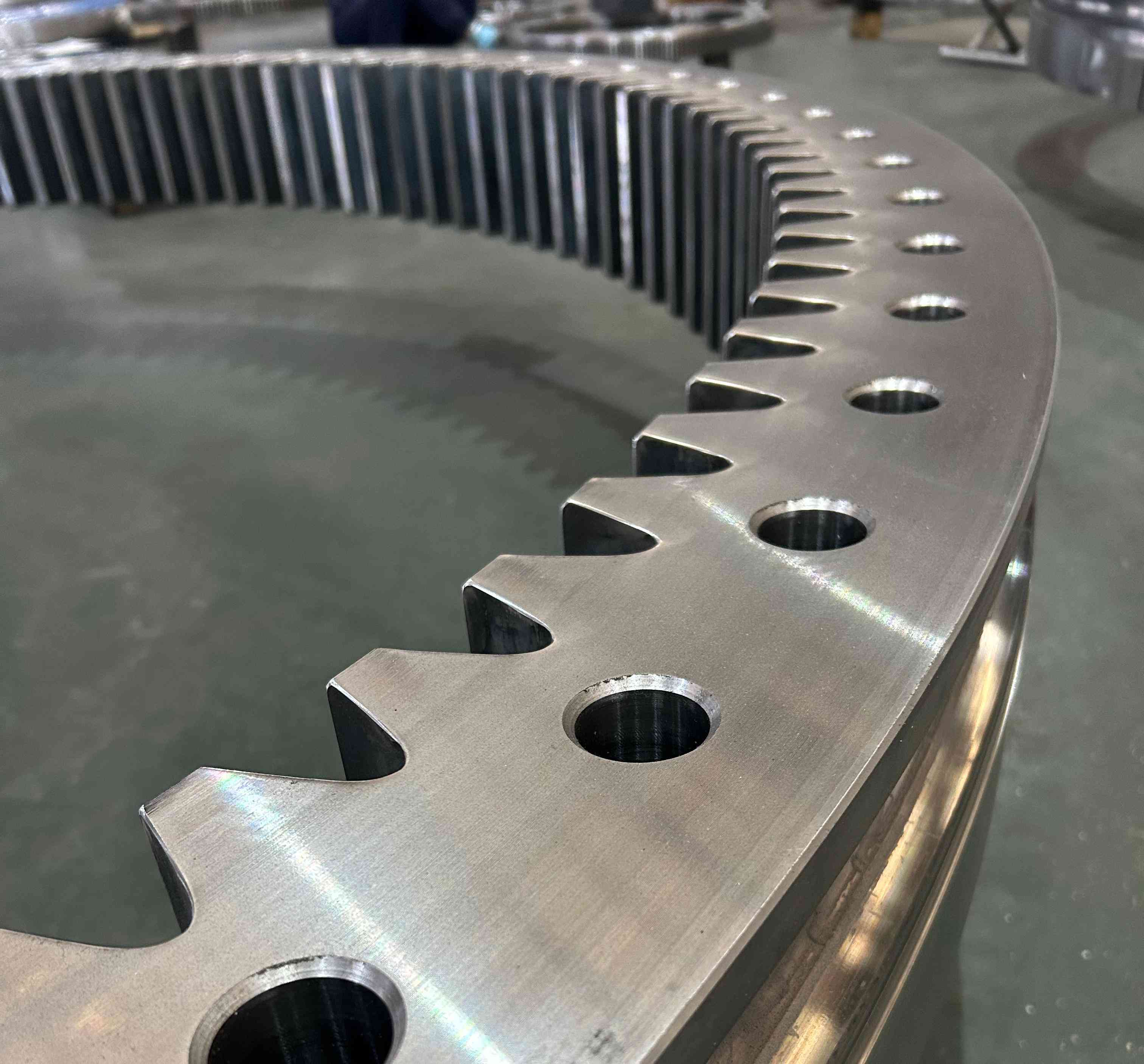

Internal gear slewing bearing

Gearless slewing bearing

LTZC employs high-precision hobbing and grinding processes in gear profile machining to ensure stable gear ring meshing.

(II) Structural Features

A single-row ball slewing bearing, with only a single row of steel balls, is a lightweight slewing bearing with a simple structure and easy installation. The four-point contact design between the steel balls and raceways improves load-bearing capacity and enables high-precision control. Compared to double-row or crossed-roll slewing bearings, single-row ball bearings are more widely used in automation and offer better value for money due to their lower price. LTZC provides customized single-row ball slewing bearing services.

III. Applications of Single-Row Ball Slewing Bearings

Single-row ball slewing bearings are widely used in:

Industrial robot turntables

Automated welding equipment

Laser cutting equipment

Packaging machinery

Intelligent sorting systems

Semiconductor equipment

Inspection equipment turntables

AGV rotating platforms

In these applications, the slewing ring not only bears heavy loads but also directly participates in the power transmission system. Through the meshing of the gear ring and the drive pinion, precise angle control is achieved. Especially in scenarios requiring continuous rotation and high repeatability, single-row ball slewing bearings exhibit excellent operational stability.

IV. Applications of Single-Row Ball Slewing Bearing in Automation

1. Automated Turntable Systems

In automated assembly lines, turntable systems require precise positioning across multiple workstations. As a core rotating component, the slewing bearing's rotational accuracy directly impacts assembly precision.

LTZC provided a customized slewing ring for a European automation equipment manufacturer. The ring has a diameter of 1200mm, a gear ring precision reaching DIN 6 grade, and rotational runout controlled within 0.03mm. Customer feedback after deployment indicates that the slewing bearing offers flexible transmission, significantly improving equipment stability and positioning accuracy.

2. Industrial Robot Rotating Bases

Robot bases typically bear complex overturning moments. Single-row ball slewing bearings employ optimized raceway design to effectively distribute loads and improve fatigue life.

LTZC optimized the raceway contact angle through finite element analysis, ensuring stable operation of the slewing bearing even under high-frequency start-stop conditions.

3. Precision Automated Inspection Equipment

Automated inspection equipment demands extremely high rotational stability. The machining precision and lubrication system of the slewing ring are crucial.

LTZC uses high-purity steel and improves the surface roughness control of the raceway through precision grinding processes, ensuring the long-term stable operation of automated equipment.

V. Advantages of LTZC as a Chinese Slewing Bearing Manufacturer

1. Strong Processing Capabilities

Maximum processing diameter up to 13000mm; CNC gear hobbing equipment ensures gear ring precision; advanced heat treatment processing technology.

2. Rigorous Quality Inspection System

Every slewing bearing undergoes comprehensive ultrasonic testing, hardness testing, gear ring precision testing, and load simulation testing to ensure that all slewing bearings leaving the factory meet international standards.

3. Customization Capabilities

LTZC can customize solutions according to customer application needs: special material selection, special sealing structure design, customized anti-corrosion coating, and special lubrication system design, truly achieving comprehensive coverage from standard products to customized solutions.

Contact LTZC for single row ball slewing bearing quote.
