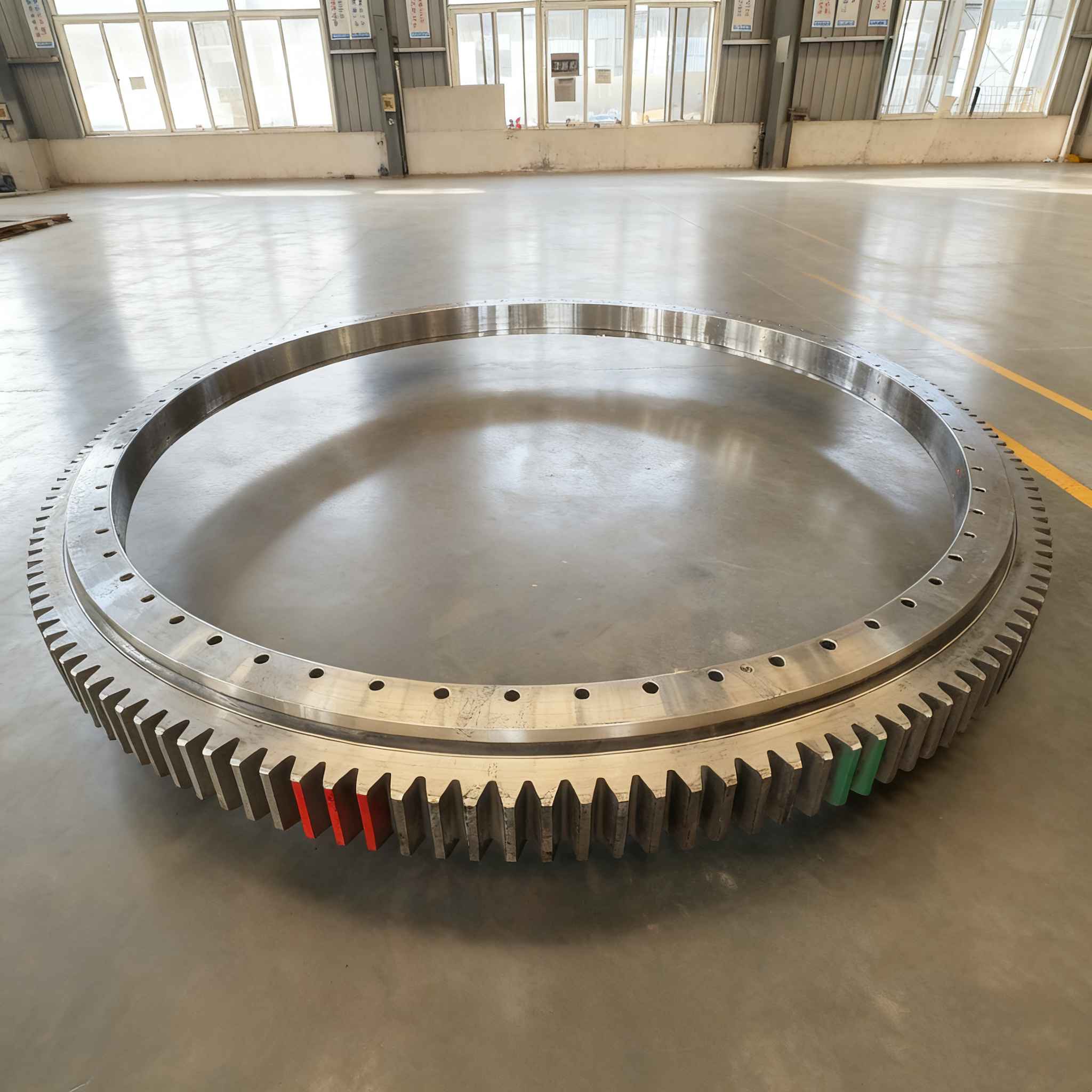

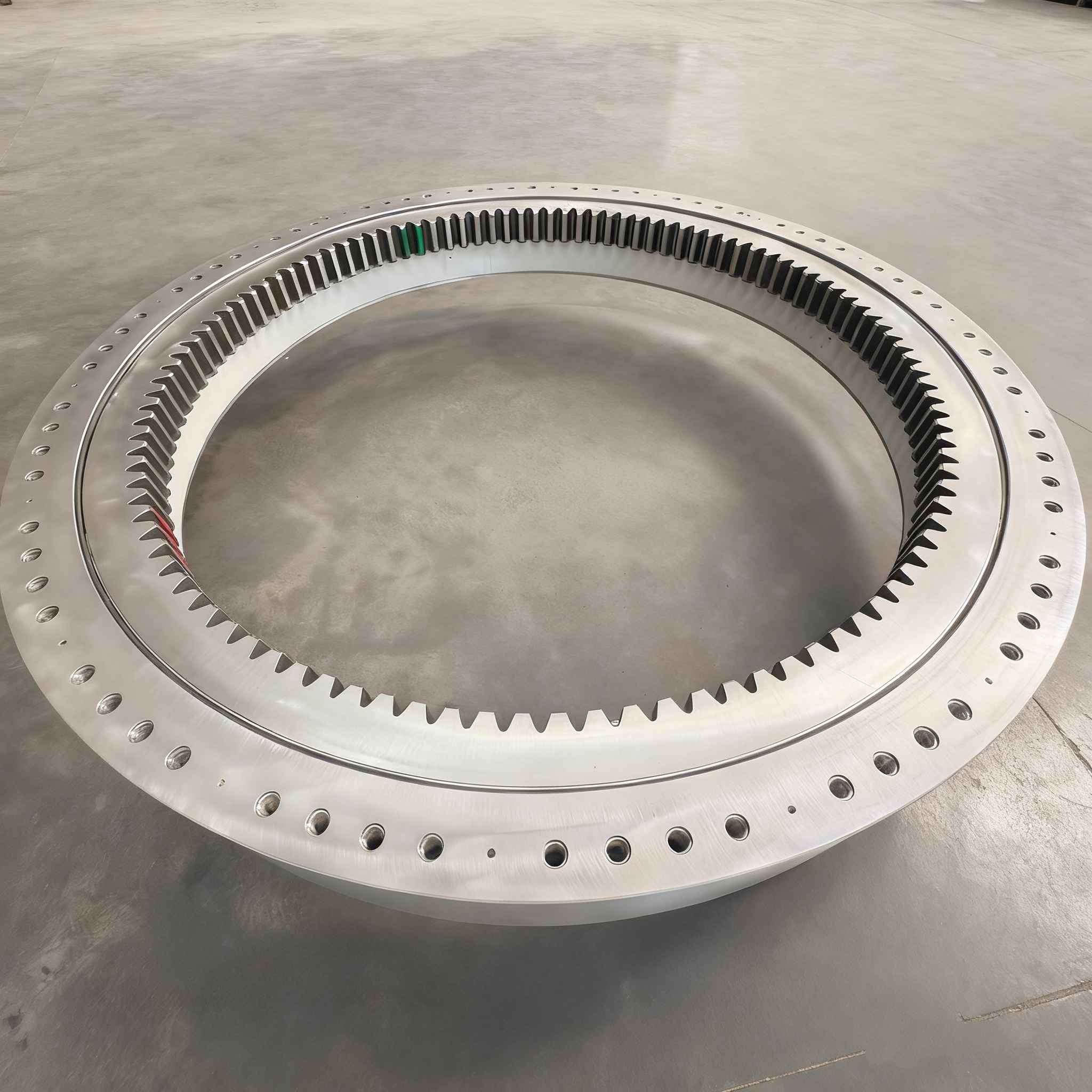

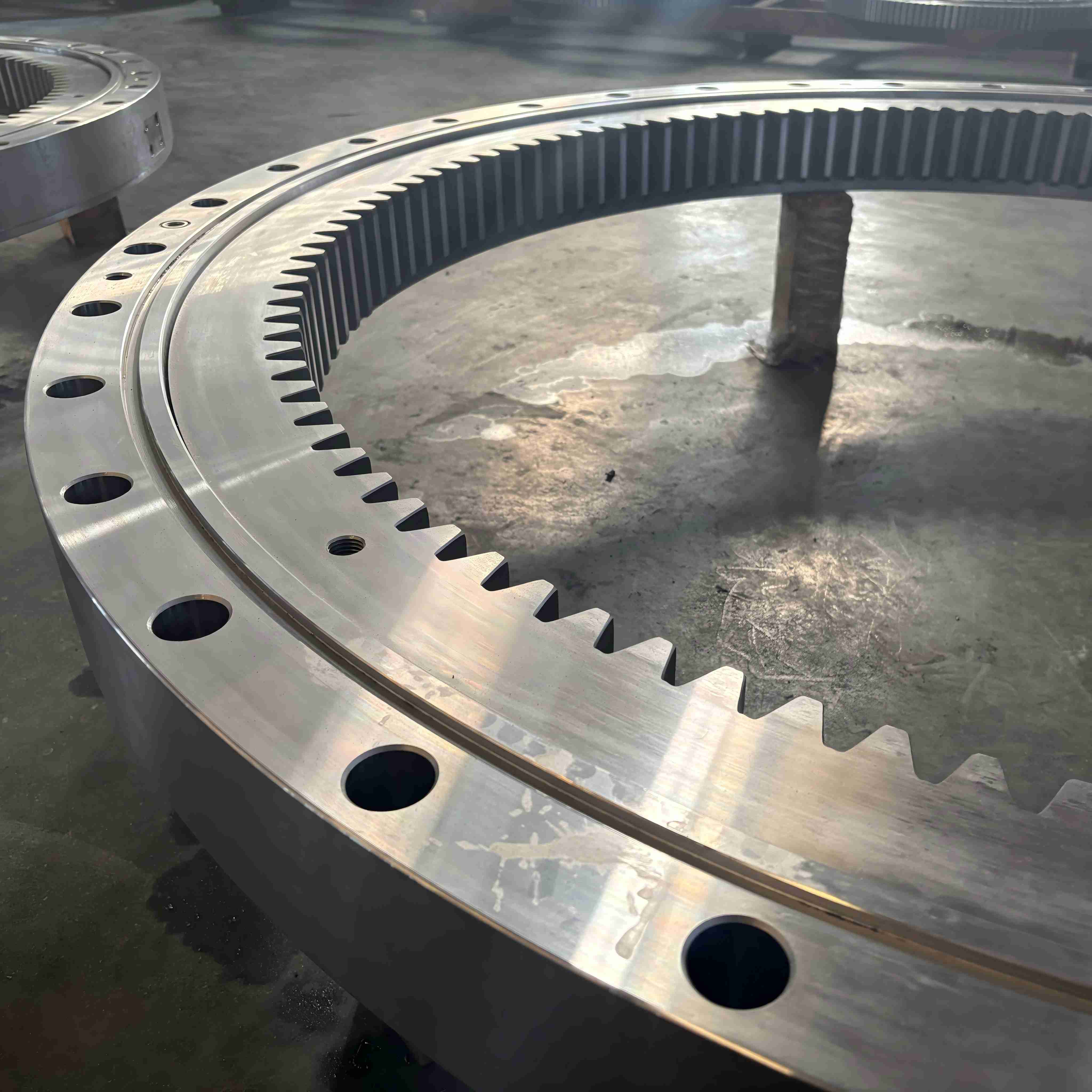

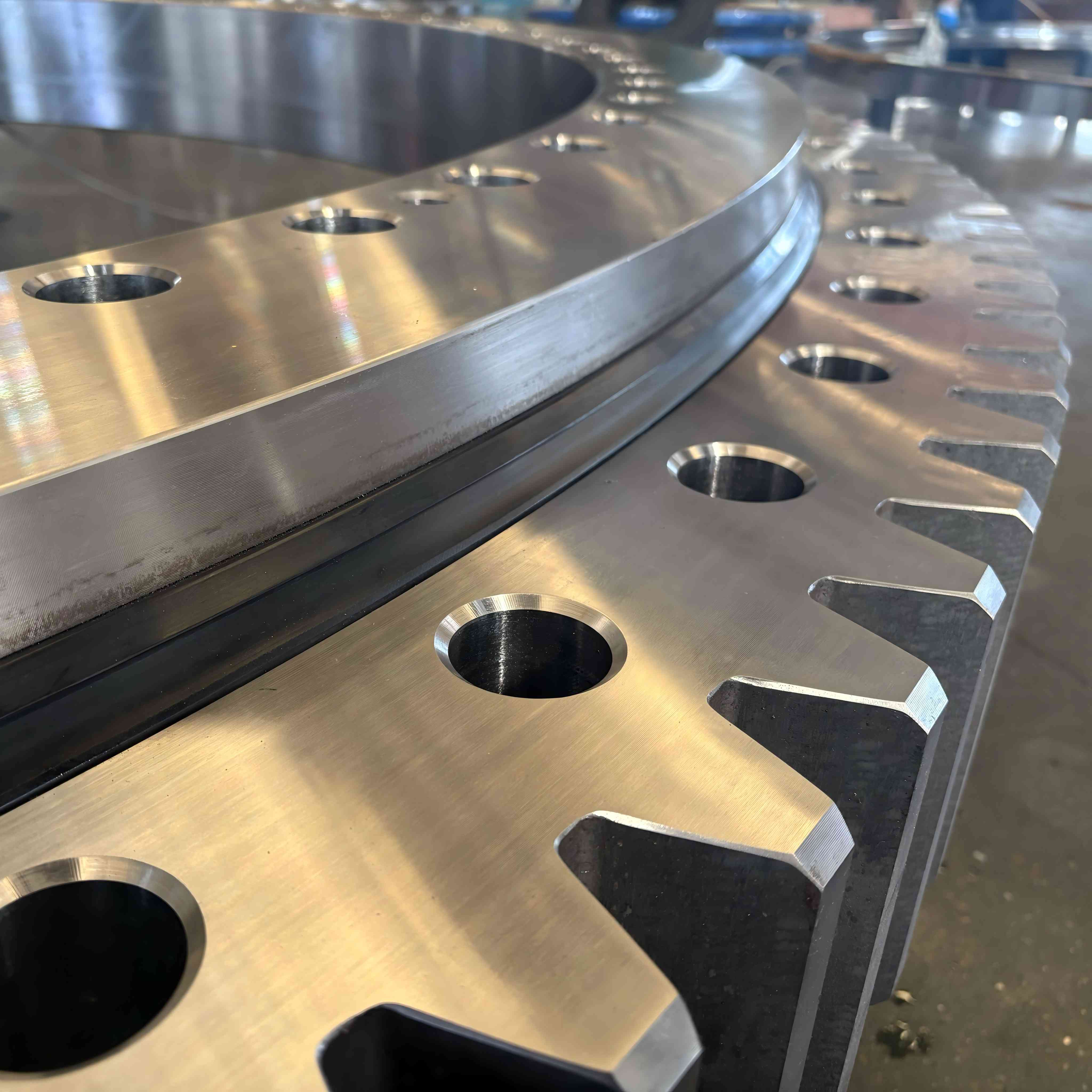

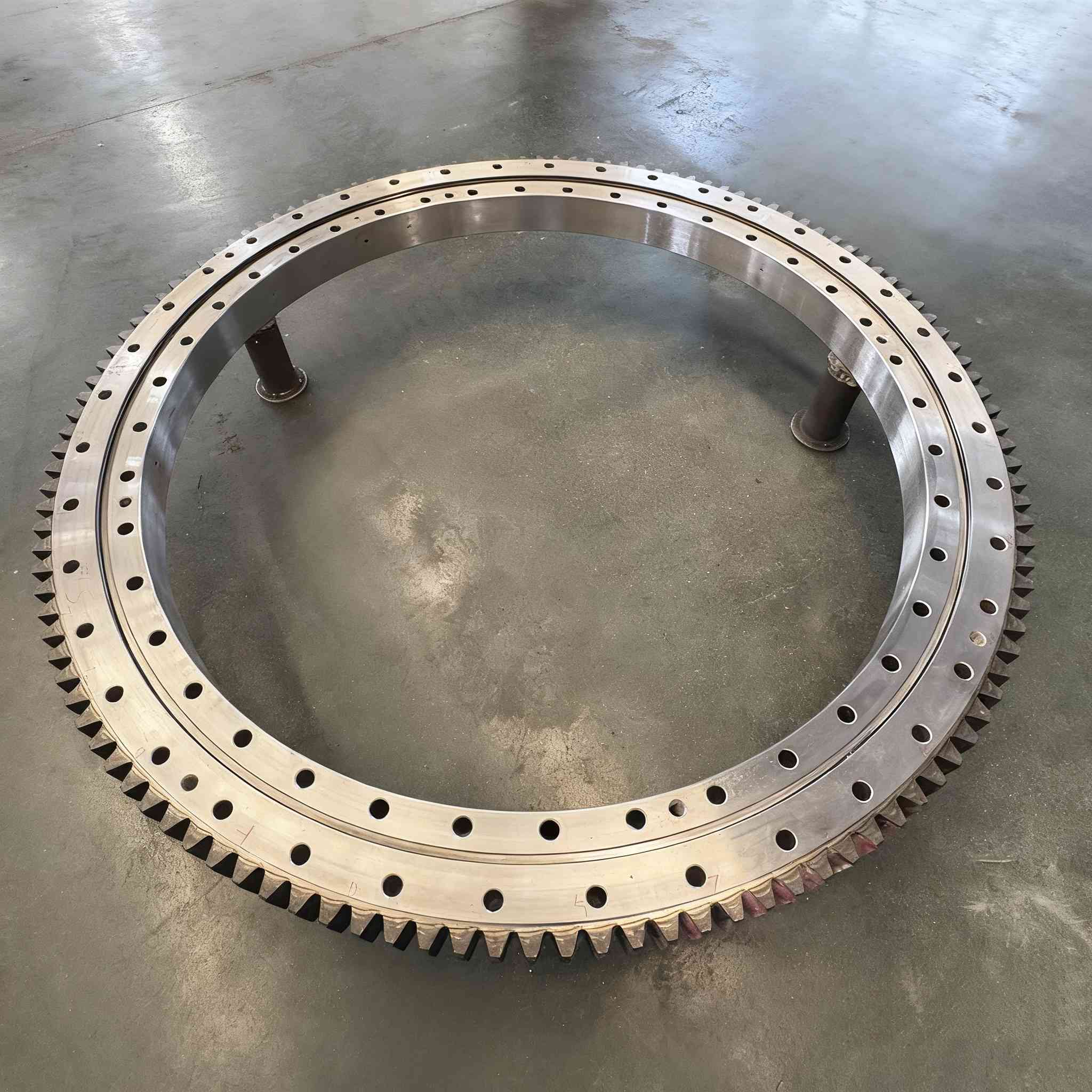

The three-row roller slewing bearing is the slewing bearing with the strongest load-bearing capacity. The inner and outer rings are equipped with three rows of cylindrical rollers, which can withstand radial loads, axial loads and overturning loads, improving structural strength and operational reliability. The three-row roller slewing bearing can provide internal or external integrated transmission devices.
Slewing Bearing Features: Three-row roller slewing bearings have a higher load capacity than crossed roller slewing bearings. The LTZC three-row roller slewing bearing boasts the highest load-bearing capacity among all slewing bearings. It employs three independent rows of rollers, with the upper and lower rows bearing loads at a 90° angle, ensuring ample clearance for each roller and guaranteeing smooth operation and precise rotation.

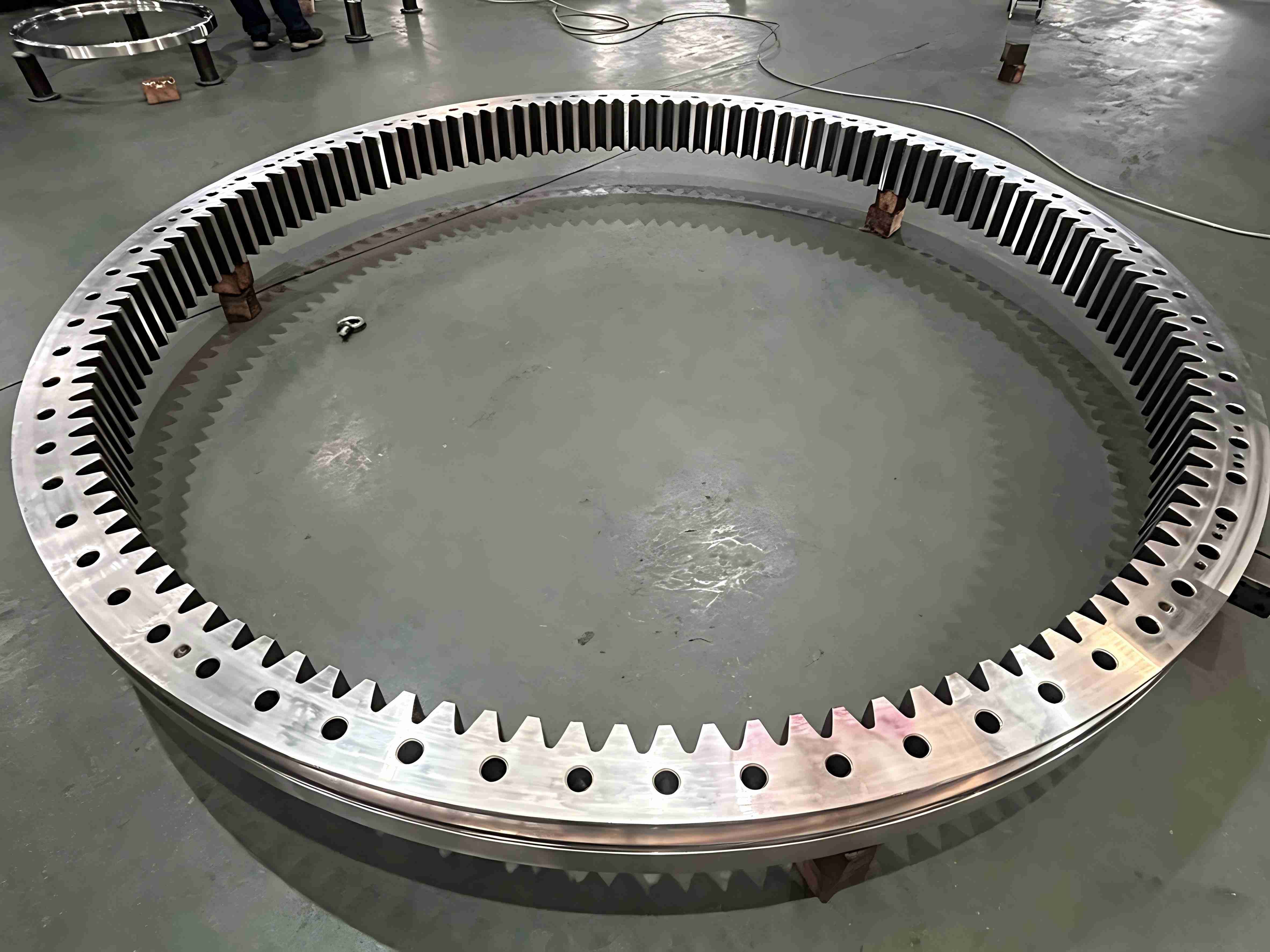

Slewing Bearing Applications: The three-row cylindrical roller slewing bearing is designed to withstand extremely large radial/axial/tilting combined loads. The contact area and contact points between the rolling elements and raceways are far greater than those of single/double-row bearings. It is not designed for high speeds, but is primarily suited for slewing mechanisms in cranes, excavators, port machinery, and wind turbine mainframes, where rotational speeds are low (typically operating speed < 50 r/min, maximum speed < 200 r/min) and loads are extremely heavy.
Bearing manufacturing : The inner and outer rings of the LTZC three-row roller slewing bearing are typically made of materials such as 42CrMo, 50Mn, and 45# steel, undergoing quenching and tempering treatment to achieve a hardness between 170HB and 340HB,ensuring durability and a long service life. The rolling elements are typically made of GCr15 or GCr15SiMn bearing steel, with a hardness of 58-62HRC. The cage is usually made of nylon, and the seals are typically made of butyl rubber or fluororubber.
Customized Bearings: The LTZC engineering team can customize slewing bearings according to customer equipment requirements andprovide bearing CAD drawings. If parameters are unclear, we can conduct on-site surveys and develop a professional bearing selection plan. We also supportalternatives to international brand bearings, ensuring reliable performance and stable delivery times.
LTZC possesses a complete independent production system and large-scale precision machining capabilities. LTZC can produce large slewing bearings with diameters ranging from300mm to 15000mm and holds international certifications includingISO9001, 14001, 45001, CCS, BV, and ABS. LTZC bearings are suitable for marine engineering equipment, wind power, port machinery, construction machinery, and ultra-heavy-duty rotating structures. The products featurehigh load-bearing capacity, high stability, and long service life, meeting the continuous operation requirements under harsh working conditions.
With over 20 years of experience in bearing R&D, our global service network covers countries such as India and Russia, ensuring fast and efficient technical support for all bearing issues and ensuring the smooth operation of your equipment.
Advanced CNC production equipment and manufacturing processes guarantee bearing precision and durability. LTZC bearings also carry third-party testing reports to ensure they meet international standards.
LTZC products include slewing bearings, slewing drives, precision thin-wall bearings, and custom bearings. They are widely used in cranes, heavy machinery, and port machinery, maintaining stable performance under harsh operating conditions.
Our experienced technical team provides customized bearing solutions for complex applications. Services include load analysis and bearing selection, service life calculations, 3D design, and engineering drawings.
LTZC slewing bearing manufacturer
LTZC Bearings is a trusted bearing manufacturer specializing in slewing bearings, slewing drives, and precision bearings. With advanced CNC machining equipment, comprehensive heat treatment, and strict quality control, our products meet international standards and are ISO certified.
We export high-quality industrial bearings to Germany, India, Russia, and Canada, earning over 10,000 satisfied customer feedbacks. With strong OEM and ODM capabilities, LTZC provides fast delivery and custom bearing solutions for heavy machinery, construction, and automation industries.
LTZC is a professional slewing bearing manufacturer，providing a full range of custom bearing services, including slewing rings, non-standard bearings, large bearings, thin-section bearings, crossed roller bearings, and four-point contact ball bearings. Whether the requirements are special sizes, materials, or complex operating conditions, we can provide customers with the optimal solution through professional R&D and precision manufacturing.
LTZC provides precision slewing bearings, precision robot bearing, customized bearing solutions, thin section bearing widely used in rotating equipment in the field of industrial automation.
LTZC specializes in manufacturing bearings of various sizes, LTZC specializes in developing marine-grade and defense-grade bearings designed to deliver exceptional strength, corrosion resistance, and long-term operational stability.
LTZC bearings are widely used in the aerospace field, LTZC is committed to providing high-precision, high-performance slewing bearing solutions for the aerospace and communications sectors.
LTZC offers high-performance slewing bearings, large diameter slewing bearings, wheel bearings, and slew ring solutions with competitive bearing prices and reliable manufacturing quality.
