What are slew ring bearings used for?

In the realm of modern mechanical equipment, the slewing bearing serves as a core transmission and load-bearing component. It plays a pivotal role in connecting the stationary and rotating sections of machinery, while simultaneously transmitting axial loads, radial loads, and overturning moments; consequently, its performance directly dictates the operational stability, working efficiency, and service life of the entire machine. Whether in large-scale excavators and tower cranes used in civil engineering, wind turbines in the new energy sector, or heavy-duty handling equipment at ports and terminals, the precise capabilities enabled by slewing bearings are indispensable. As a specialized domestic manufacturer of large and extra-large slewing bearings, LTZC has dedicated over 30 years to deep-rooted expertise in this industry. Leveraging sophisticated manufacturing processes, rigorous quality control, and extensive experience in customization, the company delivers high-quality slewing bearing products to diverse sectors worldwide—encompassing core categories such as excavator slewing rings and crane slewing bearings—thereby precisely meeting the operational requirements of various working conditions.

I. How Do Slewing Bearings Work?

Slewing Bearing Structure and Components

Inner Ring、Outer Ring、Rolling Elements、Cage、Sealing Device、Gear Ring (Internal Gearing, External Gearing, or Non-geared)

Common Types of Slewing Bearings

Single-Row Four-Point Contact Ball Slewing Bearings

Double-Row Ball Slewing Bearings

Crossed Roller Slewing Bearings

Three-Row Cylindrical Roller Slewing Bearings

II.Working Principle of Slewing Bearings

A slewing bearing—also known as a turntable bearing or slewing ring—is essentially a large-scale precision bearing capable of simultaneously supporting multi-directional loads and enabling 360-degree rotation. Its core operating principle involves fixing either the inner or outer ring of the bearing to the equipment; as the equipment rotates, power is transmitted via a gear ring to the fixed ring, driving the rolling elements to execute a rolling motion within the raceway. This process facilitates the smooth rotation of the moving components while efficiently transmitting various complex loads. Compared to traditional sliding bearings, slewing bearings significantly reduce frictional resistance, thereby enhancing both transmission efficiency and load-bearing capacity.

What are slew ring bearings used for?

Slewing bearings find extremely broad application across a multitude of sectors, including construction machinery, port equipment, new energy, mining machinery, metallurgical equipment, precision machine tools, and defense equipment. Equipment within these diverse fields imposes varying requirements regarding the structure, dimensions, load-bearing capacity, and rotational precision of slewing bearings. In response to the specific operating conditions characteristic of each sector, LTZC engages in the customized R&D and manufacturing of a wide array of slewing bearing products. Among these, excavator slewing rings and crane slewing bearings stand as core product categories, commanding a significant share of the market thanks to their exceptional performance.

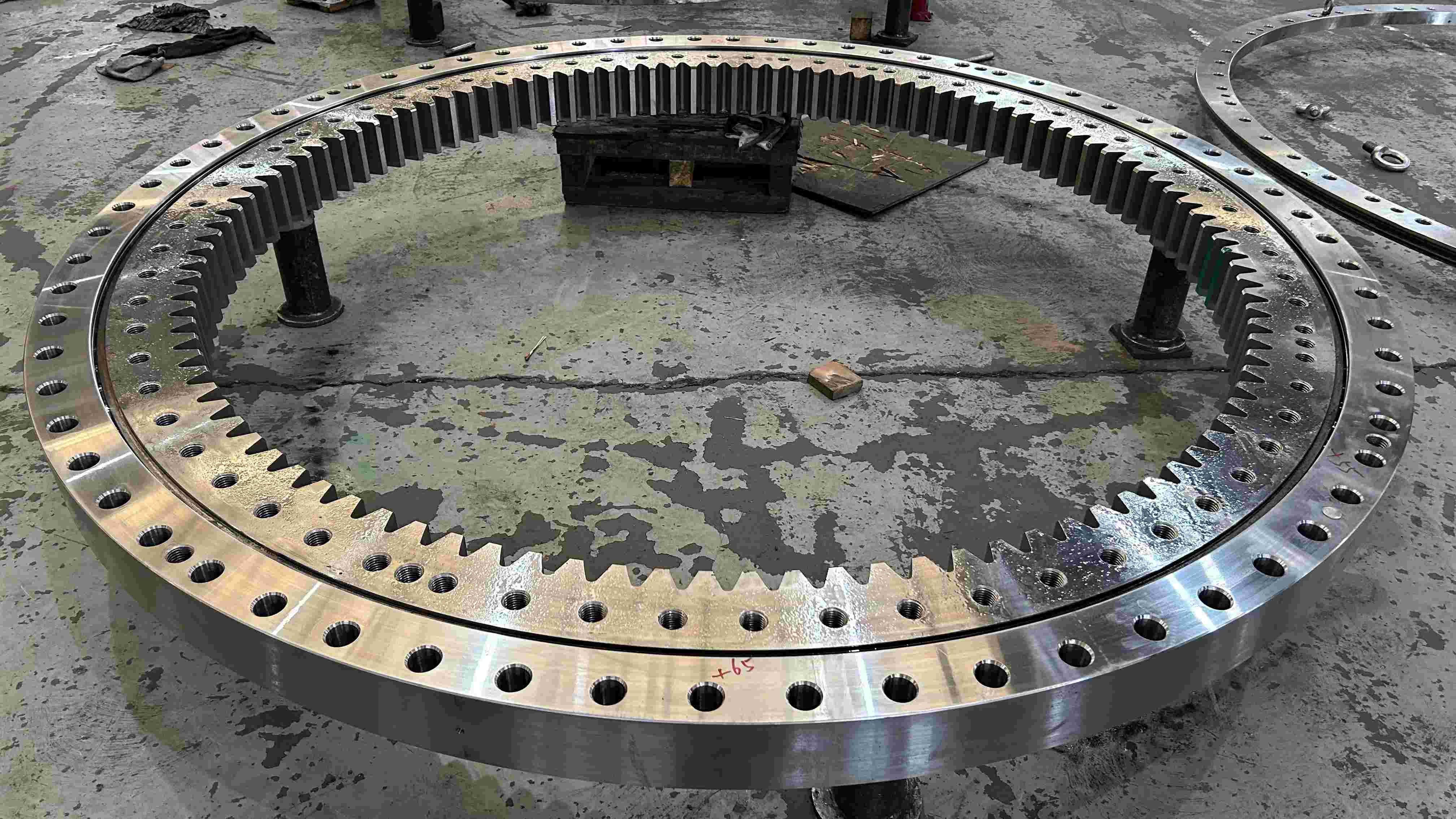

1.Excavator Slewing Bearings

In the field of excavators, the most commonly utilized types of slewing bearings are single-row four-point contact ball bearings, double-row ball bearings, and crossed roller bearings. The specific models and structural configurations of the slewing bearings selected vary depending on the excavator's tonnage:

Small excavators (under 10 tons) typically employ single-row four-point contact ball bearings; characterized by their compact structure, light weight, and agile rotation, these bearings are well-suited to meet the operational demands of light loads and low-to-moderate rotational speeds.

Medium-sized excavators (10 to 30 tons) predominantly utilize double-row ball bearings. Featuring a design with two rows of steel balls, these bearings offer a higher load-bearing capacity than their single-row counterparts, enabling them to withstand substantial axial loads and overturning moments—thereby meeting the heavy-duty operational requirements of medium-sized excavators.

Based on client specifications, LTZC offers customized excavator slewing bearings featuring various structural designs, tailored for complex operating environments, or manufactured with extra-large diameters. These specialized slewing bearings possess exceptional load-bearing capabilities and superior shock resistance, making them ideally suited to handle the extreme heavy-load conditions encountered by large-scale excavators.

View excavator slewing bearing manufacturing site.

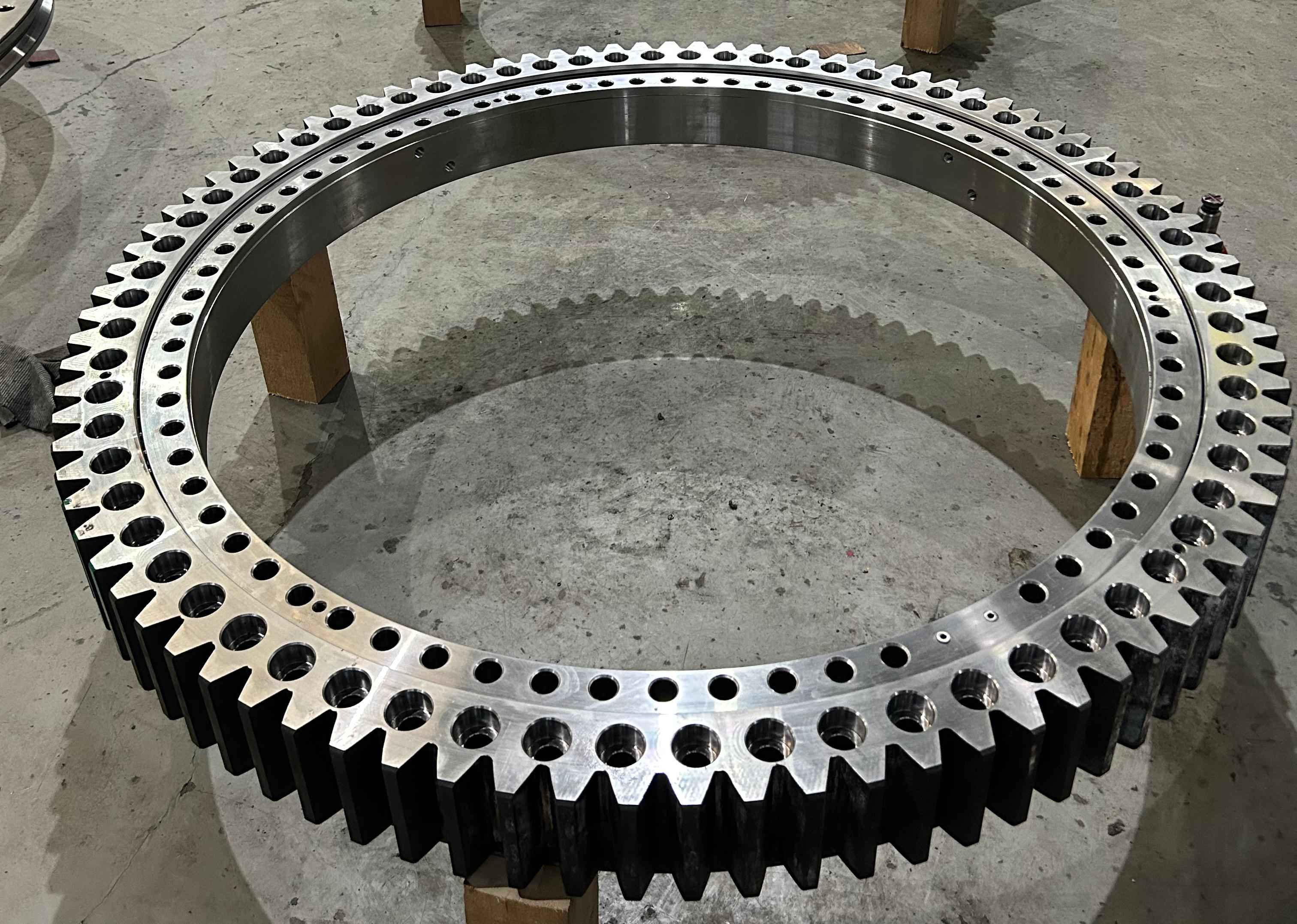

2. Crane Slewing Bearings

Tower cranes are primarily utilized in the construction sector; characterized by their significant working heights and large operating radii, they impose extremely rigorous demands on the rotational precision, load-bearing capacity, and stability of their slewing bearings. The most commonly employed types of crane slewing bearings are double-row ball slewing bearings and three-row roller slewing bearings.

Double-row ball slewing bearings feature a compact structure capable of withstanding substantial axial loads and overturning moments, making them ideally suited for small to medium-sized tower cranes.

Three-row roller slewing bearings utilize a design featuring three distinct rows of rollers—each dedicated to bearing axial loads, radial loads, and overturning moments, respectively—thereby offering exceptional load-bearing capacity. These bearings are specifically tailored for use in large-scale tower cranes. LTZC manufactures customized triple-row roller slewing bearings capable of supporting loads reaching thousands of tons, with rotational precision tolerances controlled within 0.1 mm, thereby ensuring the stability and safety of tower cranes during high-altitude operations.

Furthermore, LTZC offers bespoke services to crane manufacturers, designing custom slewing bearing solutions tailored to specific parameters—such as crane tonnage, operating radius, and working conditions—to ensure a perfect match between the bearing and the equipment. Additionally, LTZC provides installation guidance and post-installation maintenance services, offering comprehensive support to guarantee the safe and efficient operation of the cranes.

Contact LTZC get customized bearing solutions

View cranes slewing ring manufacturing site

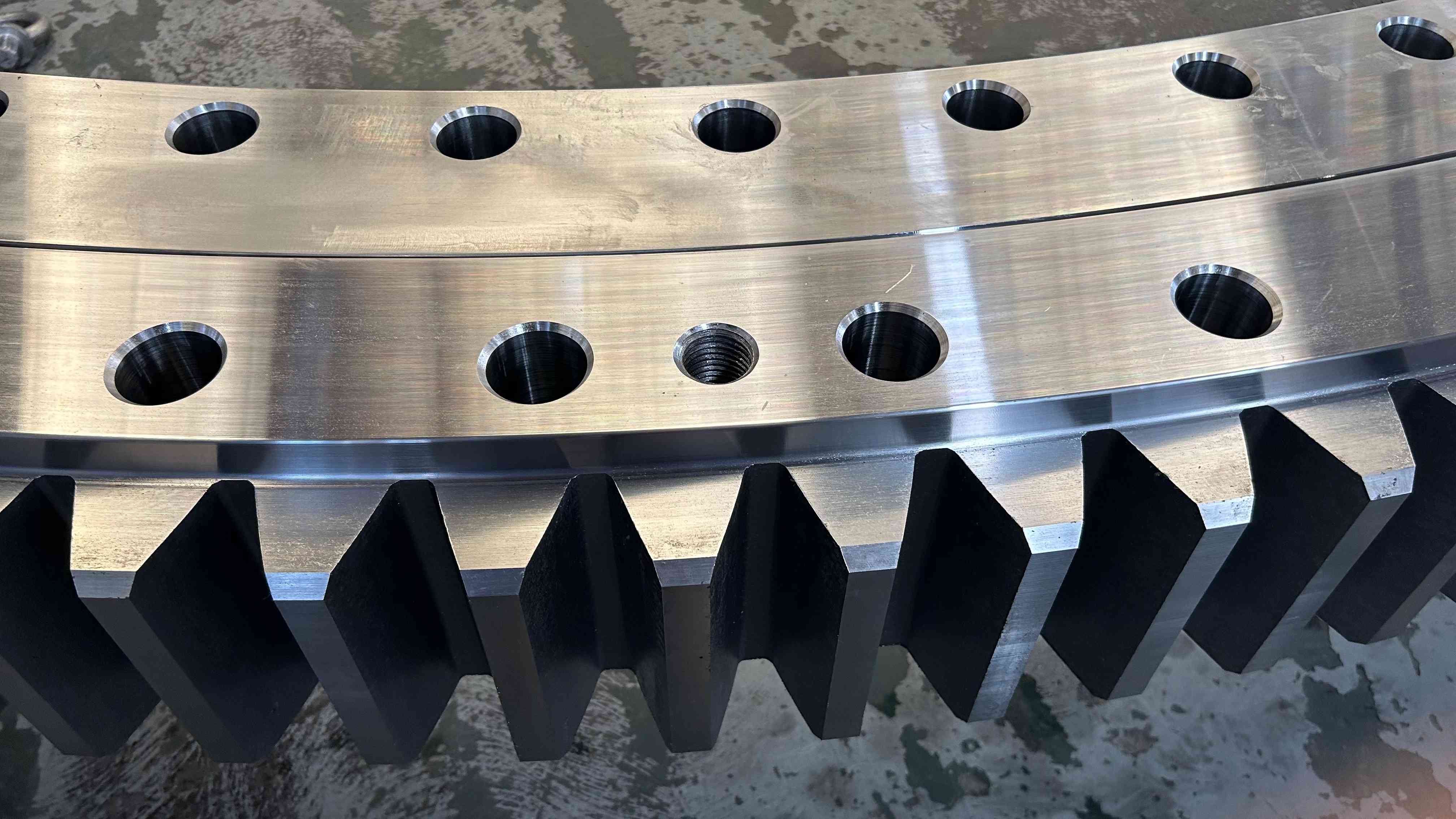

4.Slewing Bearings for Mining Equipment

Mining machinery comprises equipment utilized for mining extraction, mineral processing, and related operations—including mining excavators, crushers, tunnel boring machines, transfer machines, and mining cranes. Such equipment is frequently subjected to severe impact, heavy loads, and high-dust environments. Tailoring its solutions to the specific operating conditions of mining machinery, LTZC has developed a series of heavy-duty, wear-resistant, and dust-proof slewing bearing products. These bearings are widely deployed across various types of mining machinery, serving as a critical safeguard for the efficient and safe execution of mining operations.

The slewing mechanism—a core component of mining excavators and crushers—relies on a slewing bearing to facilitate the equipment's rotational movement. The most commonly utilized types in this context are three-row roller slewing bearings and cross-roller slewing bearings. These bearings possess exceptional load-bearing capacity and superior impact resistance, enabling them to withstand the heavy and shock loads inherent to mining machinery operations. Furthermore, LTZC has developed multi-layer waterproof and dust-proof sealing structures specifically for mining equipment slewing bearings. Additionally, the lubrication system has been optimized through the use of high-temperature-resistant grease; this ensures that the lubricant remains stable and does not readily volatilize even in high-temperature operating environments, thereby minimizing friction and wear while reducing equipment maintenance costs and downtime.

Contact LTZC get customized bearing solutions

III. Conclusion

As a leading domestic manufacturer specializing in large and extra-large slewing bearings, LTZC has dedicated itself to the industry for over 30 years. Leveraging exquisite manufacturing techniques, rigorous quality control, extensive experience in customization, and comprehensive after-sales support, the company delivers high-quality slewing bearing products to diverse sectors worldwide. Its core product portfolio encompasses key categories such as excavator slewing rings and crane slewing bearings. Characterized by high precision, robust load-bearing capacity, excellent wear resistance, and extended service life, these products are capable of meeting the demands of a wide range of complex operating environments, thereby earning widespread recognition from clients across the globe.

As industrial technology continues to advance, performance requirements for slewing bearings across various fields are becoming increasingly stringent. LTZC remains committed to deepening its expertise in the slewing bearing sector—continuously optimizing product designs, refining manufacturing processes, and enhancing after-sales services. By developing an ever-expanding range of high-quality, high-performance slewing bearing products, the company aims to provide even more robust core support for the growth of various industries, while simultaneously contributing to the high-quality development of the global machinery and equipment sector.
