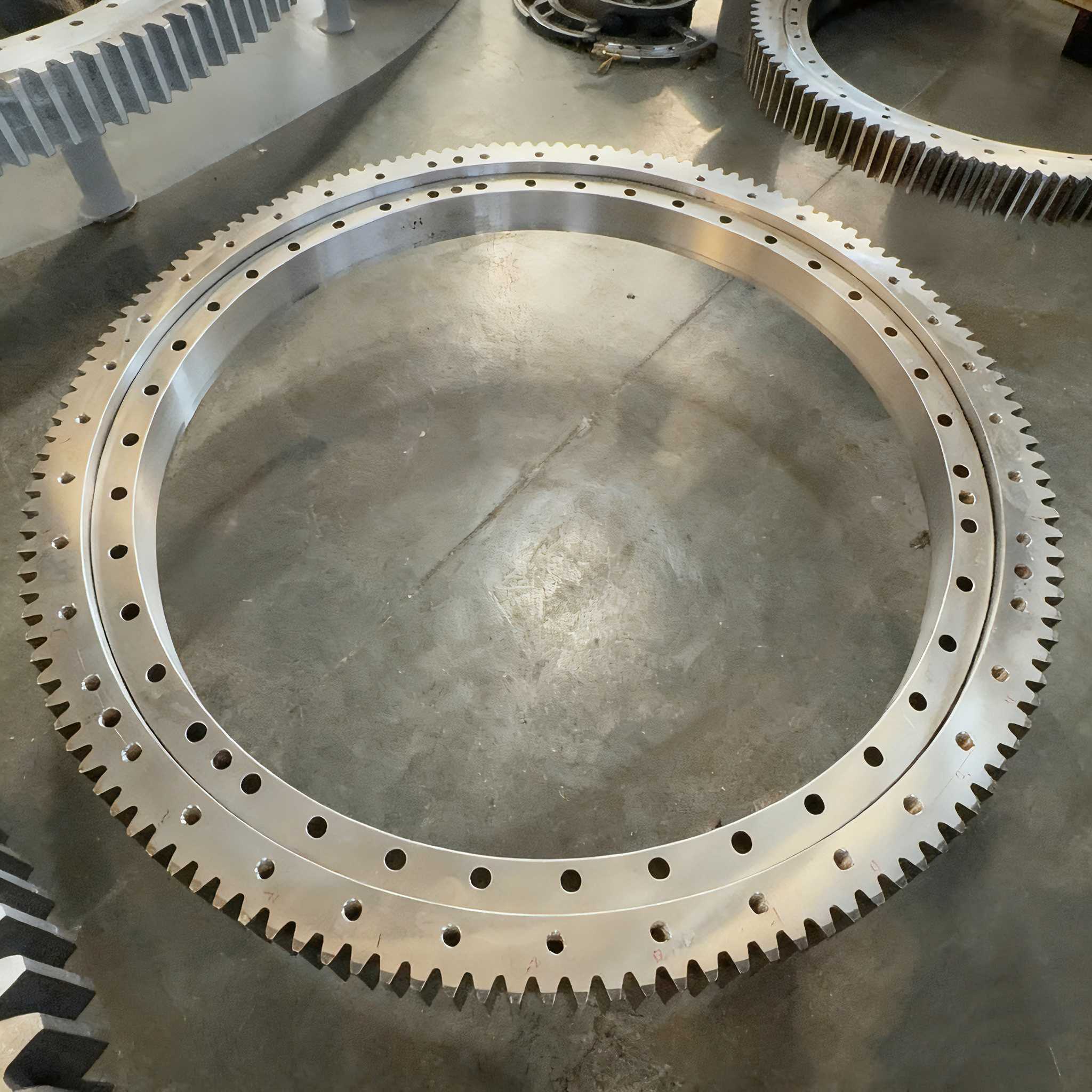

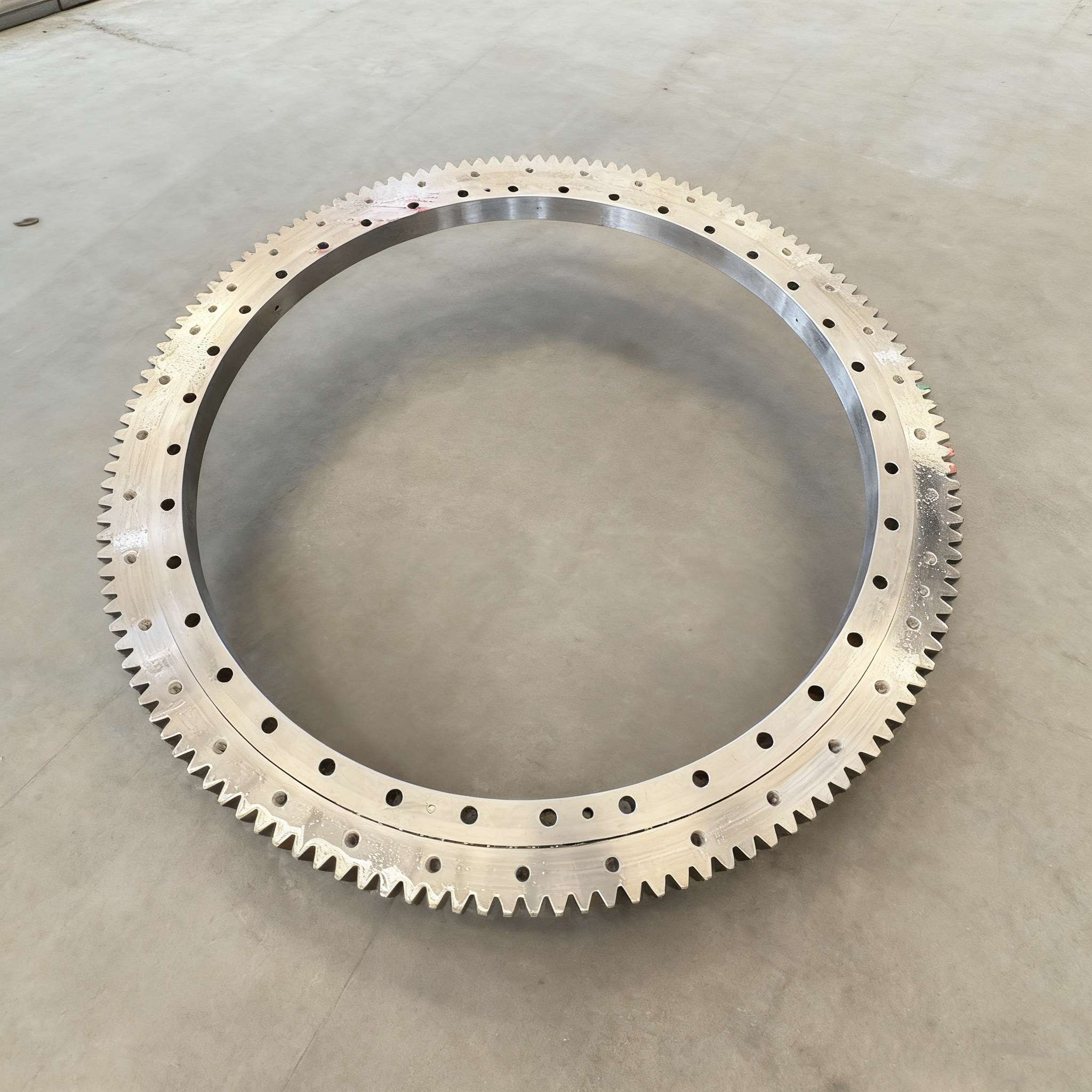

Double-row ball slewing bearing is a high-load slewing bearing product. It adopts a double-row steel ball rolling element design, including rolling elements of the same diameter and rolling elements of different diameters. It can simultaneously withstand large axial forces, radial forces and higher overturning moments. It has a compact structure and stable rotation.
Bearing Manufacturing ： Inner and outer rings are typically made of materials such as 42CrMo, 50Mn, and 45# steel, with a quenched and tempered hardness between 170HB and 340HB, ensuring durability and a long service life. Rolling elements are typically made of GCr15 or GCr15SiMn bearing steel, with a hardness of 58-62HRC. Cages are typically made of nylon, and seals are typically made of butyl rubber or fluororubber.
LTZC precision bearing
LTZC bearings are machined using ultra-precision grinding equipment with a 'three-grind, three-inspection' process, and are equipped with a precision roundness tester to accurately detect parameters such as inner/outer diameter tolerance, roundness, and runout, with a testing accuracy of 0.01μm. Each batch of products undergoes 100% inspection to meet the following accuracy levels, ensuring high-precision bearings for our customers.
Precision Grade
Bore Tolerance (φ50 mm)
Outer Diameter Tolerance (φ90 mm)
Radial Runout
Axial Runout
Raceway Roundness Error
Raceway Surface Roughness Ra
P0
0 ~ -10 μm
0 ~ -13 μm
≤ 15 μm
≤ 15 μm
±0.015 mm
≤ 1.6 μm
P6
0 ~ -8 μm
0 ~ -8 μm
≤ 10 μm
≤ 10 μm
±0.010 mm
≤ 1.25 μm
P5
0 ~ -6 μm
0 ~ -5 μm
≤ 6 μm
≤ 8 μm
±0.008 mm
≤ 0.8 μm
P4
0 ~ -5 μm
0 ~ -3 μm
≤ 3 μm
≤ 4 μm
±0.005 mm
≤ 0.4 μm
P2
0 ~ -3 μm
0 ~ -2 μm
≤ 2 μm
≤ 3 μm
±0.003 mm
≤ 0.2 μm
Double-row ball slewing bearing advantages
Leveraging its complete production chain and large-diameter bearing machining capabilities, LTZC's double-row roller bearing series boasts significant advantages in reliability, load-bearing capacity, and lifespan.
1. Superior Load-Bearing Capacity
LTZC's double-row roller structure consists of two groups of rollers that can withstand loads in different directions and possess extremely strong overturning moments and load-bearing capacities, making it suitable for heavy-duty applications such as mining equipment, offshore platforms, and wind power equipment.
2. High Rigidity and High Stability
The compact arrangement of the double-row rollers, with its low height and high rigidity, maintains stable meshing and precision even under continuous heavy loads, making it suitable for equipment requiring precise positioning, heavy-duty rotation, and impact resistance.
LTZC possesses a complete bearing production chain. From raw material forging to final equipment testing, the LTZC team independently completes each step, ensuring that every bearing meets ISO 9001/14001/45001, CCS, BV, ABS, and other certifications.
4. Reliable Sealing Design for Harsh Environments
For dusty, humid, and low-temperature environments such as marine, wind power, and mining applications, LTZC designs feature: double or multi-seal, high-wear-resistant rubber materials, and special anti-corrosion coatings.
LTZC bearings size from 300mm to 15000mm, meeting the special operating requirements of cranes, stacker-reclaimers, port machinery, tower cranes, wind power equipment, and other applications.
LTZC provides global customers with: operating condition calculations, service life assessments and maintenance recommendations, installation and lubrication solutions, and bearing installation and maintenance guidance, ensuring reliability throughout the entire process from design to use.
With over 20 years of experience in bearing R&D, our global service network covers countries such as India and Russia, ensuring fast and efficient technical support for all bearing issues and ensuring the smooth operation of your equipment.
Advanced CNC production equipment and manufacturing processes guarantee bearing precision and durability. LTZC bearings also carry third-party testing reports to ensure they meet international standards.
LTZC products include slewing bearings, slewing drives, precision thin-wall bearings, and custom bearings. They are widely used in cranes, heavy machinery, and port machinery, maintaining stable performance under harsh operating conditions.
Our experienced technical team provides customized bearing solutions for complex applications. Services include load analysis and bearing selection, service life calculations, 3D design, and engineering drawings.
LTZC slewing bearing manufacturer
LTZC Bearings is a trusted bearing manufacturer specializing in slewing bearings, slewing drives, and precision bearings. With advanced CNC machining equipment, comprehensive heat treatment, and strict quality control, our products meet international standards and are ISO certified.
We export high-quality industrial bearings to Germany, India, Russia, and Canada, earning over 10,000 satisfied customer feedbacks. With strong OEM and ODM capabilities, LTZC provides fast delivery and custom bearing solutions for heavy machinery, construction, and automation industries.
LTZC is a professional slewing bearing manufacturer，providing a full range of custom bearing services, including slewing rings, non-standard bearings, large bearings, thin-section bearings, crossed roller bearings, and four-point contact ball bearings. Whether the requirements are special sizes, materials, or complex operating conditions, we can provide customers with the optimal solution through professional R&D and precision manufacturing.
LTZC bearings have over 20 years of experience in slewing bearing R&D. LTZC bearings are suitable for heavy machinery such as excavators, cranes, and tunnel boring machines.
LTZC is a professional manufacturer of wind turbine slewing bearings, specializing in yaw and pitch systems. LTZC provides customized bearing solutions for onshore and offshore renewable energy applications, ensuring stable performance and higher turbine efficiency.
LTZC specializes in manufacturing various bearings types , including ball bearings, roller bearings, and heavy-duty bearings, suitable for slew ring excavators and cranes.
LTZC specializes in manufacturing bearings of various sizes, LTZC specializes in developing marine-grade and defense-grade bearings designed to deliver exceptional strength, corrosion resistance, and long-term operational stability.
LTZC bearings are widely used in the aerospace field, LTZC is committed to providing high-precision, high-performance bearing solutions for the aerospace and communications sectors.
LTZC offers high-performance slewing bearings, large heavy-duty bearings, wheel bearings, and slew ring solutions with competitive bearing prices and reliable manufacturing quality.
Feel free to get a quote on the latest price of slewing bearings for any largeapplications,
please include your application, needs, requirements and otherdetails.
