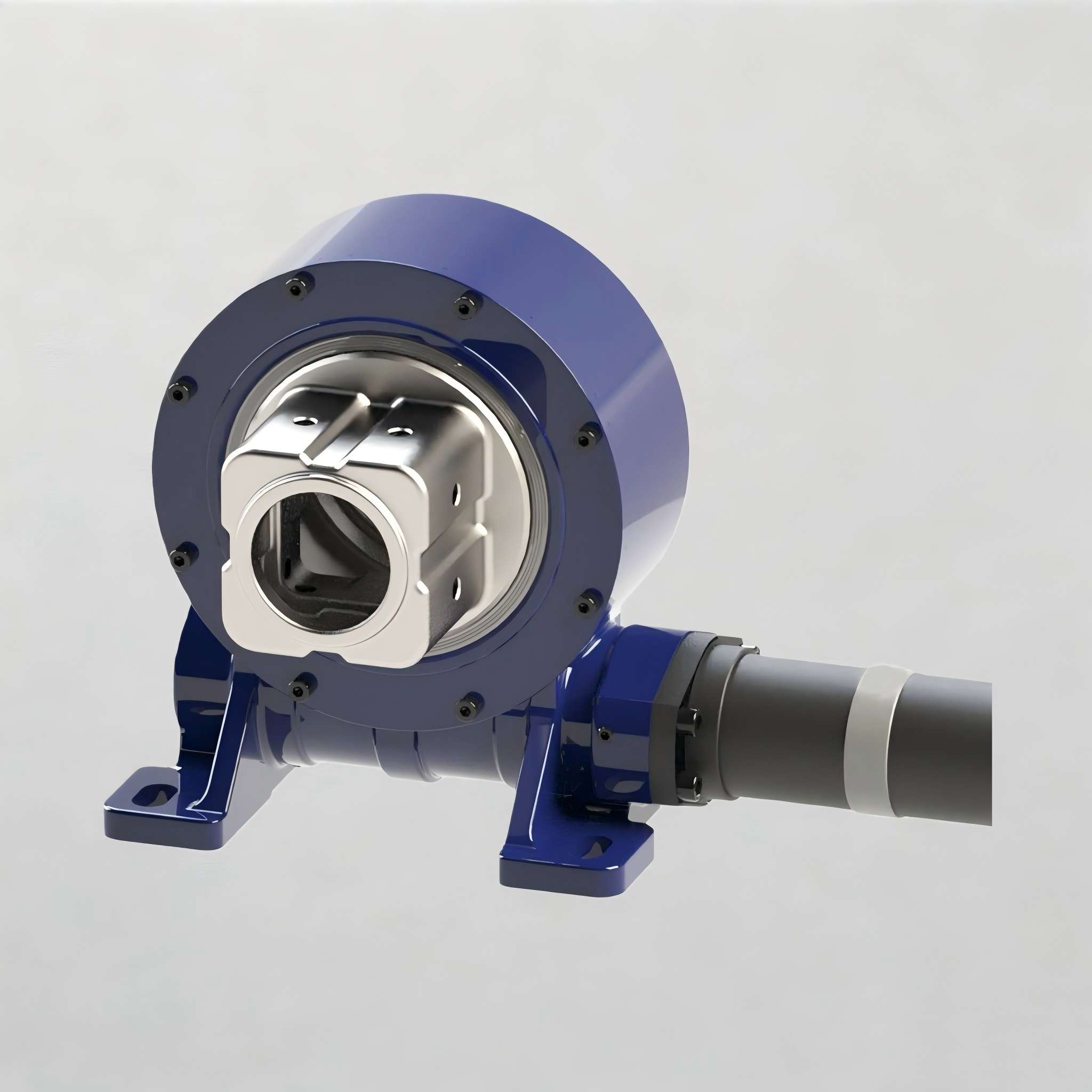

Solar Tracking Slewing Drive
What is solar tracker slewing drive？
A solar tracking slewing drive is a driving device that tracks changes in the sun's angle. It adjusts the angle of photovoltaic panels and concentrating mirrors according to the sun's azimuth and elevation angles, maximizing the reception of solar radiation energy and thus improving the power generation efficiency of photovoltaic or solar thermal power plants. It is available in both single-axis and dual-axis rotation designs.
How does a solar tracker slewing drive work?
The solar tracking slewing drive device uses a worm gear rotation drive as its core actuating component. Through a control system that receives light from a light sensor, the drive motor rotates the worm gear. The worm gear reducer and torque amplification drive the slewing bearing connected to the photovoltaic support to perform rotational or pitching movements, ensuring the photovoltaic modules are aligned with the sun in real time. The device utilizes the self-locking characteristic of the worm gear to ensure the support does not reverse or sway under harsh conditions such as strong winds, achieving stable, accurate, and safe solar tracking and improving photovoltaic power generation efficiency.
Solar tracking slewing drive advantages
High-Precision Positioning: LTZC's high-precision slewing bearings and slewing drives ensure accurate tracking of solar panels under all weather conditions, maximizing light capture efficiency.
Strong Load-Bearing Capacity: The slewing bearing primarily bears the load, and LTZC has been deeply involved in the slewing bearing field for over 20 years, accumulating rich manufacturing experience.
Low Friction, High Efficiency: This solar tracking slewing drive operates continuously and is exposed to complex environments. The slewing drive manufactured by LTZC features a sealed structure design, capable of withstanding harsh natural environments such as sandstorms and heavy rain, improving overall system efficiency.
Durable and Reliable Performance: LTZC's precision drive manufacturing and quality control system ensure long-term continuous operation of the product. LTZC products have obtained ISO 9001, 14001, 45001, CCS, BV, and ABS certifications, effectively reducing maintenance frequency and operating costs.
Customized slewing drive Solutions: LTZC provides slewing drive solutions in various specifications and types, allowing for optimal matching based on different installation environments and power requirements.
Get a quote for LTZC bearings View LTZC quality and certifications View LTZC manufacturing capabilities

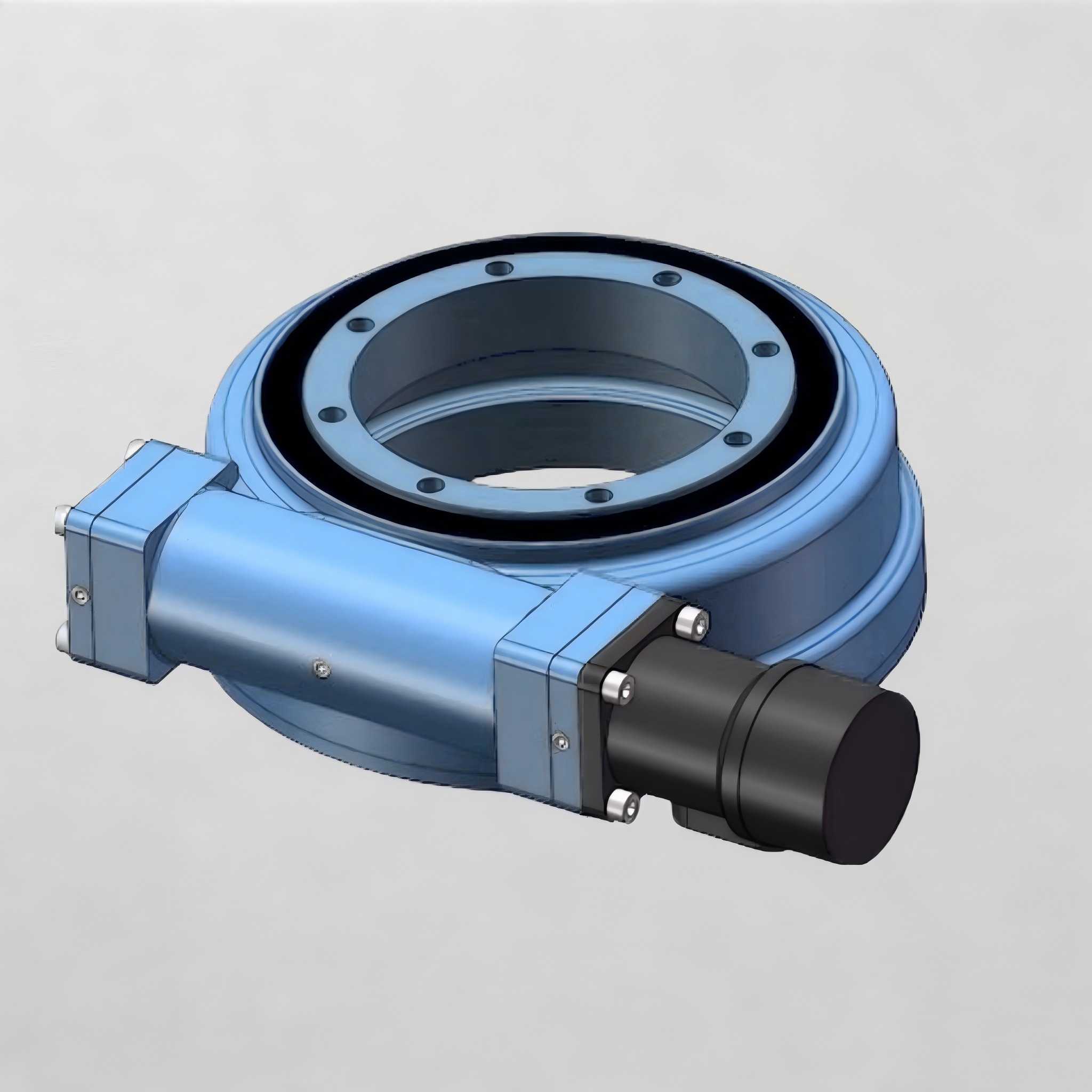

SE series-solar tracking slewing drive
|
Type
|
Output Torque
|
Overturning Moment
|
Holding Torque
|
Axial Static Load
|
Radial Static Load
|
Axial Dynamic Load
|
Radial Dynamic Load
|
Reduction Ratio
|
Accuracy Class
|
Weight
|
|
SE3C
|
400 N·m
|
1100 N·m
|
2000 kN
|
30 kN
|
16.6 kN
|
9.6 kN
|
8.4 kN
|
62:1
|
≤0.2°
|
12 kg
|
|
295 ltc.ft
|
811 ltc.ft
|
1475 ltc.ft
|
6744 lbf
|
3732 lbf
|
2158 lbf
|
1888 lbf
|
|
SE5A
|
600 N·m
|
5500 N·m
|
45 kN
|
22 kN
|
14.4 kN
|
14.4 kN
|
11.1 kN
|
62:1
|
≤0.2°
|
20 kg
|
|
442.5 ltc.ft
|
2212.5 ltc.ft
|
4056.25 ltc.ft
|
10116 lbf
|
4945.6 lbf
|
3237.1 lbf
|
2495.3 lbf
|
|
SE7
|
1500 N·m
|
13500 N·m
|
10400 N·m
|
133 kN
|
53 kN
|
32 kN
|
28 kN
|
73:1
|
≤0.2°
|
21 kg
|
|
1107 ltc.ft
|
9957 ltc.ft
|
7671 ltc.ft
|
29900 lbf
|
11915 lbf
|
7194 lbf
|
6295 lbf
|
|
SE9A
|
6.5 kN·m
|
33.9 kN·m
|
38.7 kN·m
|
338 kN
|
135 kN
|
81 kN
|
71 kN
|
61:1
|
≤0.17°
|
49 kg
|
|
4794 ltc.ft
|
25000 ltc.ft
|
29000 ltc.ft
|
76000 lbf
|
30000 lbf
|
18000 lbf
|
16000 lbf
|
|
SE12A
|
7.5 kN·m
|
54.3 kN·m
|
43 kN·m
|
475 kN
|
190 kN
|
114 kN
|
100 kN
|
78:1
|
≤0.17°
|
61 kg
|
|
5532 ltc.ft
|
40000 ltc.ft
|
32000 ltc.ft
|
107000 lbf
|
43000 lbf
|
26000 lbf
|
23000 lbf
|
|
SE14A
|
8 kN·m
|
67.8 kN·m
|
48 kN·m
|
555 kN
|
222 kN
|
133 kN
|
117 kN
|
85:1
|
≤0.17°
|
64 kg
|
|
5900 ltc.ft
|
50000 ltc.ft
|
35000 ltc.ft
|
125000 lbf
|
50000 lbf
|
30000 lbf
|
26000 lbf
|
|
SE17A
|
10 kN·m
|
135.6 kN·m
|
72.3 kN·m
|
970 kN
|
390 kN
|
235 kN
|
205 kN
|
102:1
|
≤0.15°
|
105 kg
|
|
7400 ltc.ft
|
100000 ltc.ft
|
53000 ltc.ft
|
218000 lbf
|
88000 lbf
|
53000 lbf
|
46000 lbf
|
|
SE21
|
15 kN·m
|
203 kN·m
|
105.8 kN·m
|
1598 kN
|
640 kN
|
385 kN
|
335 kN
|
125:1
|
≤0.15°
|
149 kg
|
|
11000 ltc.ft
|
150000 ltc.ft
|
78000 ltc.ft
|
359000 lbf
|
144000 lbf
|
87000 lbf
|
75000 lbf
|
|
SE25
|
18 kN·m
|
271 kN·m
|
158.3 kN·m
|
2360 kN
|
945 kN
|
590 kN
|
470 kN
|
150:1
|
≤0.15°
|
204 kg
|
|
13300 ltc.ft
|
200000 ltc.ft
|
117000 ltc.ft
|
531000 lbf
|
212000 lbf
|
133000 lbf
|
106000 lbf
|

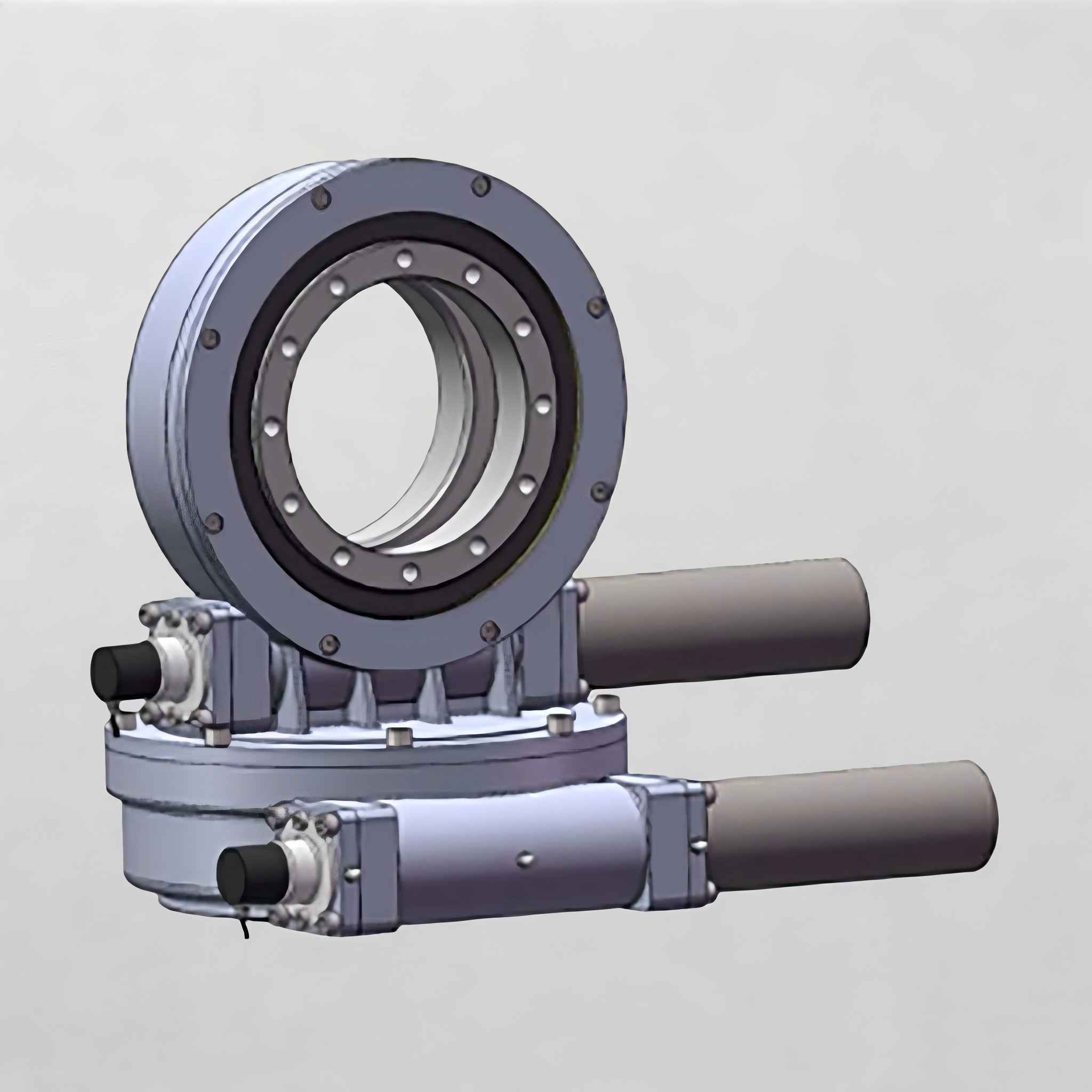

HSE series solar tracking slewing drive
|
Type
|
Output Torque
|
Overturning Moment
|
Holding Torque
|
Axial Static Load
|
Radial Static Load
|
Axial Dynamic Load
|
Radial Dynamic Load
|
Reduction Ratio
|
Accuracy Class
|
Weight
|
|
HSE9
|
9 kN.m
|
35.6 kN.m
|
38.7 kN
|
578 kN
|
215 kN
|
136 kN
|
115 kN
|
62:1
|
≤0.15°
|
53 Kg
|
|
6642 ltc.ft
|
26300 ltc.ft
|
29000 ltc.ft
|
129900 lbf
|
48300 lbf
|
30600 lbf
|
25900 lbf
|
|
HSE14
|
12 kN.m
|
71.2 kN.m
|
48 kN.m
|
960 kN
|
360 kN
|
230 kN
|
200 kN
|
86:1
|
≤0.13°
|
79.5 Kg
|
|
8856 ltc.ft
|
52600 ltc.ft
|
35000 ltc.ft
|
215800 lbf
|
80900 lbf
|
51700 lbf
|
44900 lbf
|
|
HSE21
|
21.8 kN.m
|
26.6 kN.m
|
167 kN.m
|
1058 kN
|
421 kN
|
265 kN
|
216 kN
|
82:1
|
≤0.15°
|
186 Kg
|
|
16078 ltc.ft
|
19618 ltc.ft
|
125000 ltc.ft
|
238000 lbf
|
95000 lbf
|
60000 lbf
|
49000 lbf
|
|
HSE21-2
|
43.6 kN.m
|
52.3 kN.m
|
167 kN.m
|
1058 kN
|
421 kN
|
265 kN
|
216 kN
|
82:1
|
≤0.15°
|
206 Kg
|
|
32264 ltc.ft
|
38702 ltc.ft
|
125000 ltc.ft
|
238000 lbf
|
95000 lbf
|
60000 lbf
|
49000 lbf
|
|
HSE25
|
25 kN.m
|
30 kN.m
|
271 kN
|
2360 kN
|
945 kN
|
590 kN
|
470 kN
|
94:1
|
≤0.15°
|
255 Kg
|
|
18439 ltc.ft
|
22140 ltc.ft
|
200000 ltc.ft
|
531000 lbf
|
212000 lbf
|
133000 lbf
|
106000 lbf
|
|
HSE25-2
|
50 kN.m
|
60 kN.m
|
271 kN
|
2360 kN
|
945 kN
|
590 kN
|
470 kN
|
94:1
|
≤0.15°
|
275 Kg
|
|
36878 ltc.ft
|
44280 ltc.ft
|
200000 ltc.ft
|
531000 lbf
|
212000 lbf
|
133000 lbf
|
106000 lbf
|
