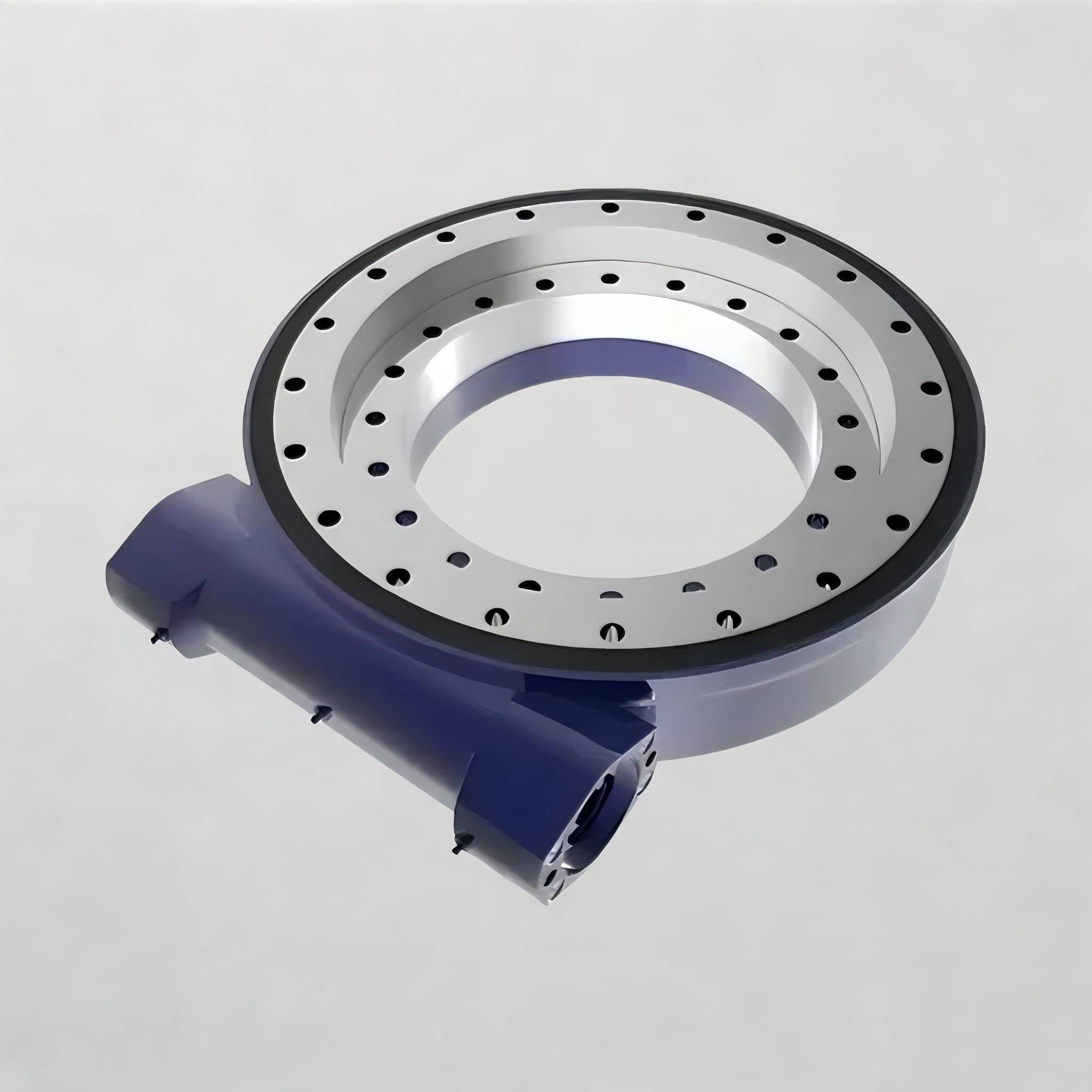

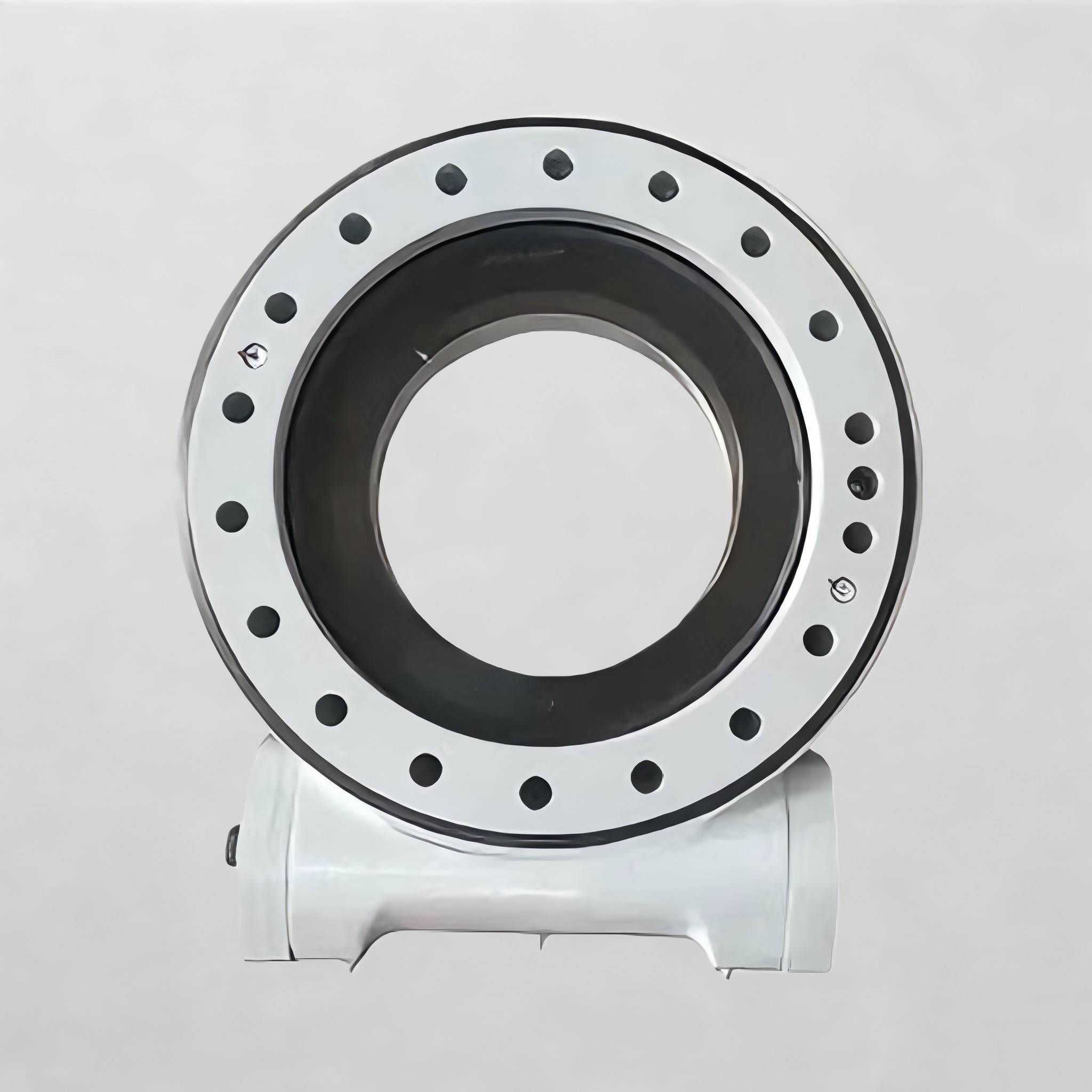

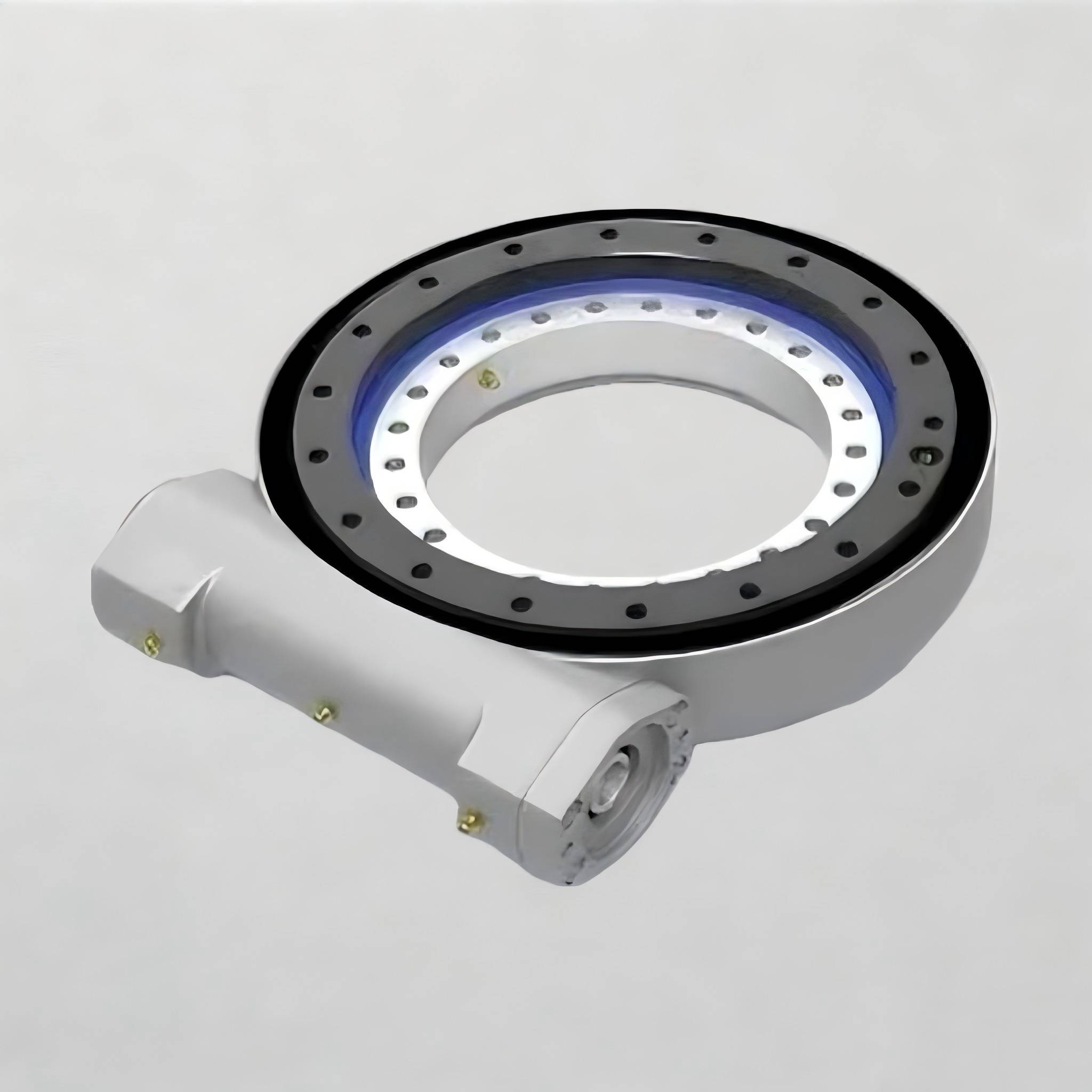

Worm Gear Slewing Drive
What is worm gear slewing drive？
The worm gear slewing drive is a compact, full-rotation reduction device that integrates worm gear transmission and a slewing bearing. It utilizes a circular slewing ring to increase output torque and enhance the wear resistance of the slewing drive. With its enclosed design, it offers dustproof and corrosion-resistant properties, ensuring stable operation in outdoor environments. Worm gear slewing drives are widely used in applications requiring low speed, high torque, and self-locking capabilities, making them crucial for export-oriented construction machinery, wind power, and photovoltaic industries.
LTZC Worm gear slewing drive features
A worm gear slewing drive is an integrated rotary drive product that uses a worm gear transmission mechanism as its core reduction unit. It integrates a worm gear reducer, slewing bearing, and flange connection structure. Some models are also equipped with accessories such as motors/hydraulic motors, brakes, and encoders. It is widely used in rotary equipment requiring low speed, high torque, and self-locking capabilities. The axes of the worm and worm wheel are typically arranged at a 90° angle in space.
1. High integration: It integrates multiple functions such as rotation, driving, and reduction, resulting in a compact and multi-functional structure.The fully enclosed structure and multiple sealing design effectively resist dust, moisture, and salt spray, making it suitable for photovoltaic tracking systems, engineering equipment, and marine equipment.
2. Strong load-bearing capacity: The slewing bearing primarily handles rotation and heavy loads, and can simultaneously withstand axial force, radial force, and overturning moment.
3. Self-locking performance: When the lead angle of the worm is less than the equivalent friction angle between the meshing tooth surfaces, the device has a self-locking function, meaning that the worm can drive the worm wheel, but the worm wheel cannot drive the worm, providing a safety protection function.
4.Stable Quality, Meets International Standards:
LTZC bearings have over 20 years of experience in bearing and drive R&D. LTZC bearing products undergo rigorous material testing, tooth surface hardness control, and whole-machine inspection, and are supported by ISO and classification society standards to ensure product reliability and consistency.
Get a quote for LTZC bearings View LTZC quality and certifications View LTZC manufacturing capabilities
Worm gear slewing drive
| Type | Output | Overturning | Holding | Axial Static | Radial Static | Axial Dynamic | Radial Dynamic | Reduction Ratio | Accuracy Class | Weight |
|---|
| Torque | Moment | Torque | Load | Load | Load | Load |
|
|
|
|---|
| WE9 | 8 kN.m | 35.6 kN.m | 38.7 kN | 578 kN | 215 kN | 136 kN | 115 kN | 62:1 | <=0.15° | 48.5 Kg |
| 5904 lbf.ft | 26300 lbf.ft | 29000 lbf | 12900 lbf | 48300 lbf | 30600 lbf | 25900 lbf |
| WE12 | 9.5 kN.m | 57 kN.m | 43 kN.m | 760 kN | 280 kN | 190 kN | 148 kN | 79:1 | <=0.15° | 61 Kg |
| 7011 lbf.ft | 42100 lbf.ft | 32000 lbf.ft | 17100 lbf | 62900 lbf | 42700 lbf | 33300 lbf |
| WE14 | 10.8 kN.m | 71.2 kN.m | 48 kN.m | 960 kN | 360 kN | 230 kN | 200 kN | 86:1 | <=0.13° | 68 Kg |
| 7970 lbf.ft | 52600 lbf.ft | 35000 lbf.ft | 215800 lbf | 80900 lbf | 51700 lbf | 44900 lbf |
| WE17 | 12.96 kN.m | 142.4 kN.m | 72.3 kN | 1166 kN | 425 kN | 280 kN | 231 kN | 104:1 | <=0.1° | 90 Kg |
| 9564 lbf.ft | 105000 lbf.ft | 5340 lbf.ft | 262000 lbf | 978800 lbf | 62900 lbf | 51900 lbf |
| WE21 | 28.7 kN.m | 203 kN.m | 105.8 kN | 1589 kN | 640 kN | 385 kN | 335 kN | 90:1 | <=0.1° | 169 Kg |
| 21180 lbf.ft | 150000 lbf.ft | 78100 lbf.ft | 359000 lbf | 144000 lbf | 87000 lbf | 75000 lbf |
| WE25 | 34.2 kN.m | 310 kN.m | 158.3 kN | 2360 kN | 945 kN | 590 kN | 470 kN | 104:1 | <=0.1° | 199 Kg |
| 25240 lbf.ft | 229000 lbf.ft | 117000 lbf.ft | 531000 lbf | 212000 lbf | 133000 lbf | 106000 lbf |
