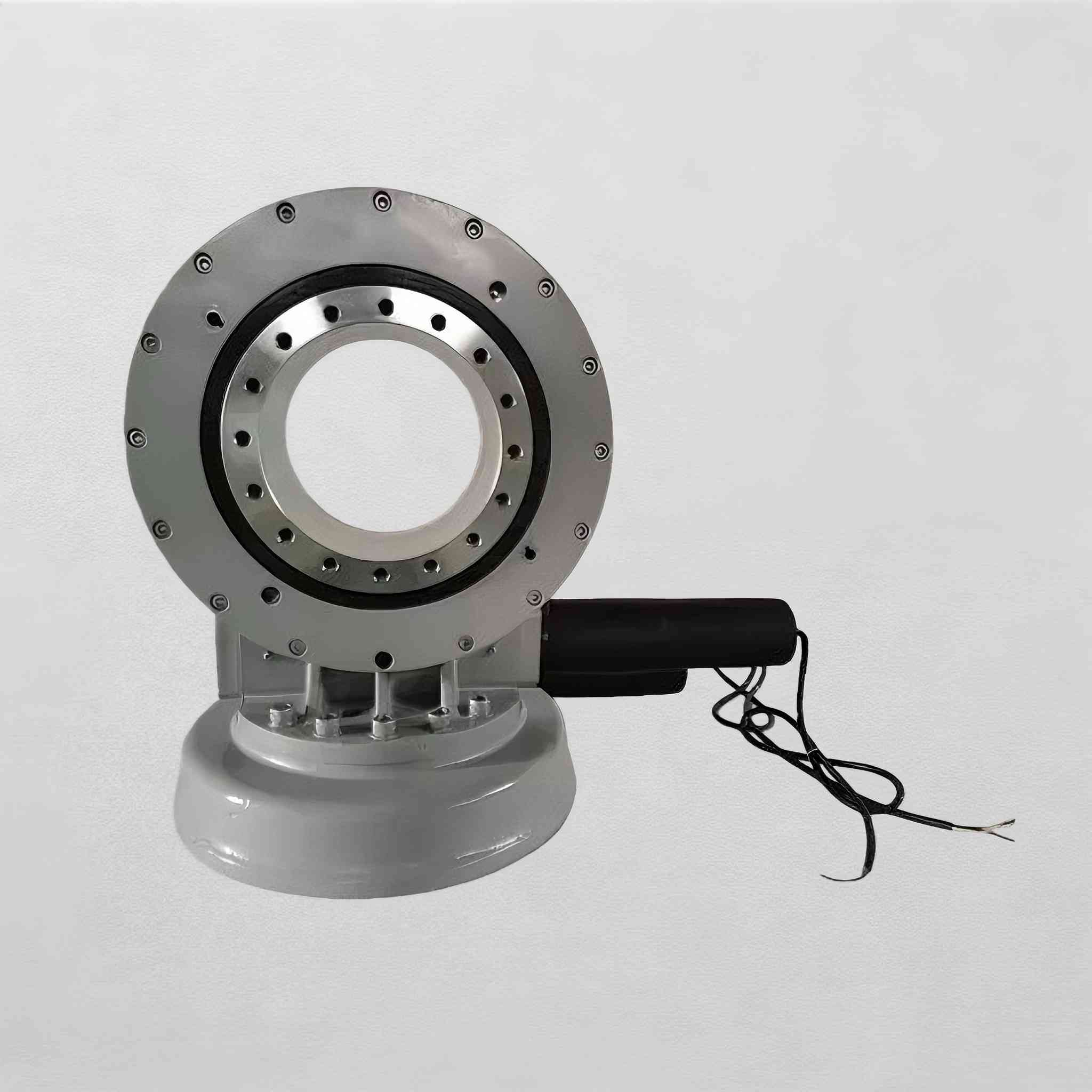

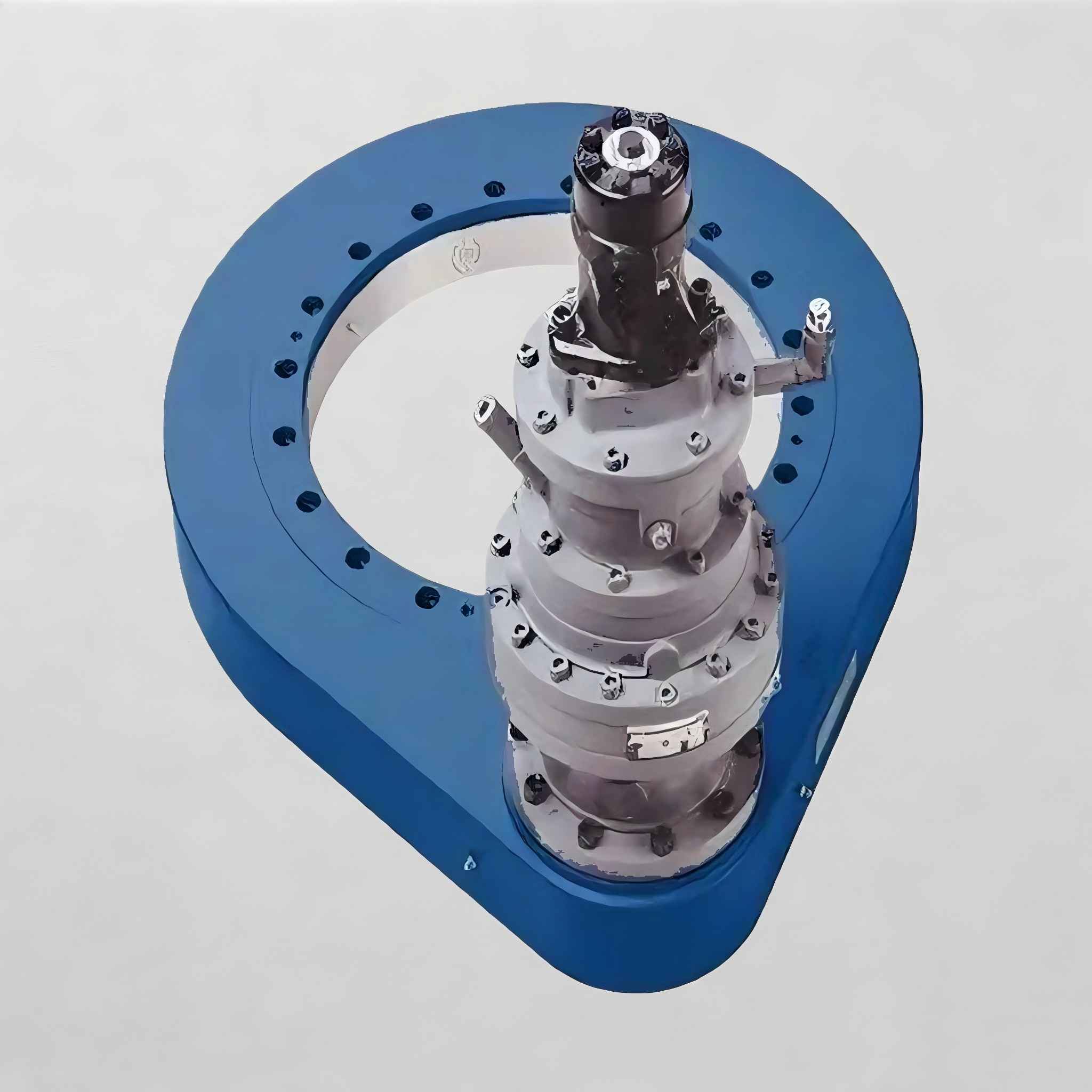

Vertical Type Slewing Drive
What is vertical slewing drive？
A vertical slewing drive is an integrated slewing drive with a vertical structure and an output shaft mounted vertically. In short, it combines a vertical slewing bearing with a drive motor and a reduction gear mechanism to achieve slewing drive in a vertical plane. Its compact design makes it easy to install. These drives are widely used in photovoltaic single-axis tracking systems, solar power generation systems, various types of cranes and aerial work platforms, as well as solar tracking and wind power generation systems.
LTZC Vertical slewing drive applications
A vertical slewing drive is a slewing drive in which the output shaft is mounted vertically and drives the platform to rotate 360° on a horizontal plane.
Construction Machinery: Excavators, cranes, aerial work platforms, fire trucks, concrete pump trucks, vehicle-mounted slewing platforms.
New Energy & Photovoltaics: Single/dual-axis solar tracking brackets, photovoltaic tracking systems.
Automation Equipment: Rotary worktables, welding positioners, AGV rotary platforms, automated production lines.
Special Equipment: Radar, satellite antennas, monitoring pan-tilt units, laser equipment, medical imaging equipment rotary tables.
Marine & Port Machinery: Marine cranes, port cranes, grab buckets, yacht cranes, marine equipment slewing mechanisms.

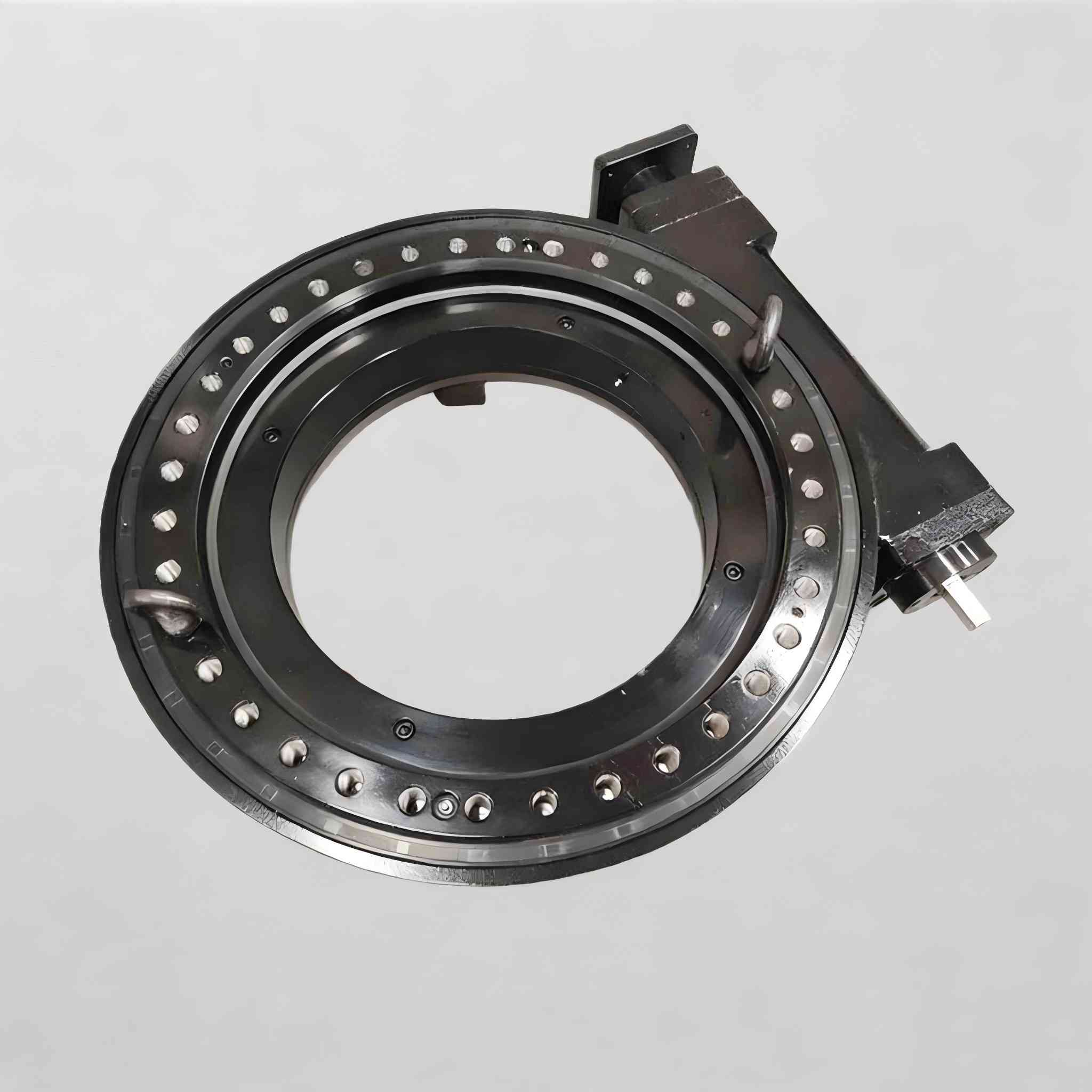

Customized Vertical type slewing drive
The core load-bearing component of the LTZC vertical slewing drive is the slewing bearing. LTZC possesses professional expertise in slewing bearing research and development, enabling the manufacture of high-load capacity slewing bearings that perfectly integrate with the vertical slewing drive.
The vertical slewing drive features an integrated design, compact structure, and convenient installation, effectively reducing the construction costs of solar power generation systems.
LTZC possesses high-precision gear surface processing technology and equipment, ensuring high gear meshing even under high load and high-speed operation of large rotating equipment, thus guaranteeing the positioning accuracy and rotational stability of the slewing drive.
LTZC can provide customized slewing bearings and slewing drives, as well as high-performance bearing sealing and lubrication solutions based on customer operating conditions, ensuring stable operation even in complex environments.
As a leading manufacturer of slewing drive devices, LTZC can provide customized slewing drive solutions, including different sizes, gear modules, drive interfaces, and integrated sensors, ensuring that each vertical slewing drive perfectly matches the customer's equipment requirements.
Get a quote for LTZC bearings View LTZC quality and certifications View LTZC manufacturing capabilities
SG Series Vertical Slewing Drives
| Model | Gear Ratio | Torque Md (Nm) | Maximum Torque Mdmax (Nm) | Axial Static Load Coax (kN) | Radial Static Load Corad (kN) |
|---|
| SG224 | 62:13:00 | 3140 | 6280 | 601 | 200 |
| SG315 | 82:13:00 | 4152 | 8305 | 915 | 340 |
| SG478 | 116:15:00 | 9500 | 14250 | 1433 | 520 |
| SG550 | 128:15:00 | 10483 | 15724 | 1598 | 640 |
WR Series Vertical Slewing Drives
| Model | Gear Ratio | Torque Md (Nm) | Maximum Torque Mdmax (Nm) | Axial Static Load Coax (kN) | Radial Static Load Corad (kN) |
|---|
| WR224 | 61:01:00 | 4790 | 9300 | 601 | 200 |
| WR341 | 85:01:00 | 10100 | 12900 | 915 | 340 |
| WR430 | 104:01:00 | 15600 | 15600 | 1124 | 410 |
| WR534 | 126:01:00 | 23500 | 30500 | 1598 | 640 |

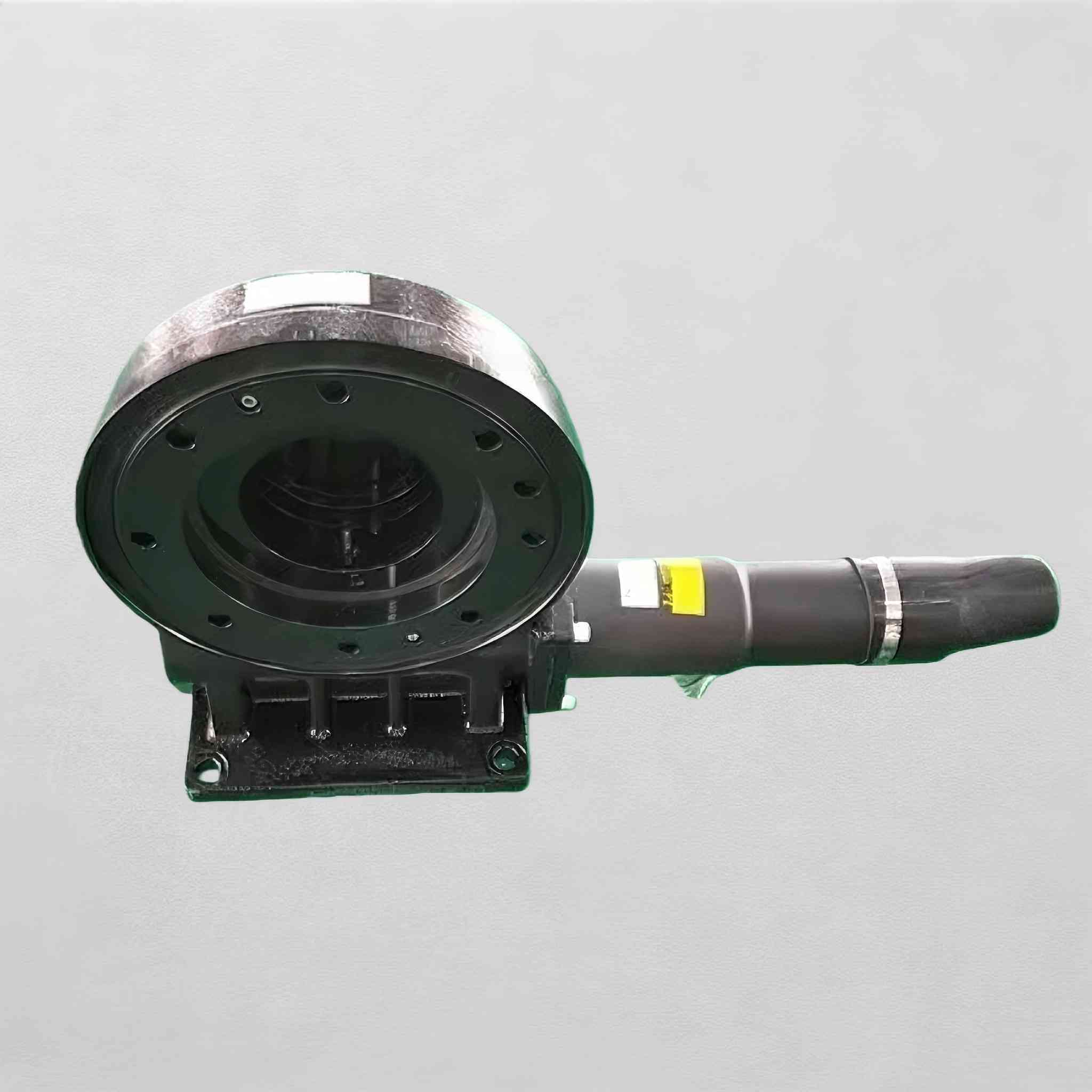

VE Series Slewing Drives
| Model | Output Torque (N·m) | Overturning Moment (N·m) | Holding Torque (N·m) | Axial Static Load (kN) | Radial Static Load (kN) | Axial Dynamic Load (kN) | Radial Dynamic Load (kN) | Gear Ratio | Accuracy Class | Self-Locking | Weight (kg) |
|---|
| VE3 | 400 | 500 | 2000 | 30 | 15 | 9.6 | 8.4 | 62:01:00 | ≤0.02° | Yes | 17 |
| VE6 | 2000 | 9000 | 10000 | 60 | 120 | 14.4 | 63 | 30:01:00 | ≤0.17° | Yes | 45 |
| VE7 | 1500 | 6000 | 10400 | 133 | 53 | 32 | 28 | 73:01:00 | ≤0.02° | Yes | 37 |
| VE9A | 6500 | 12000 | 12000 | 338 | 120 | 81 | 61 | 61:01:00 | ≤0.17° | Yes | 58 |
| VE17 | 20000 | 65000 | 75000 | 50 | 120 | - | - | 81:01:00 | ≤0.15° | Yes | 150 |
| VE21 | 23000 | 100000 | 105800 | 80 | 160 | - | - | 125:01:00 | ≤0.15° | Yes | 370 |
