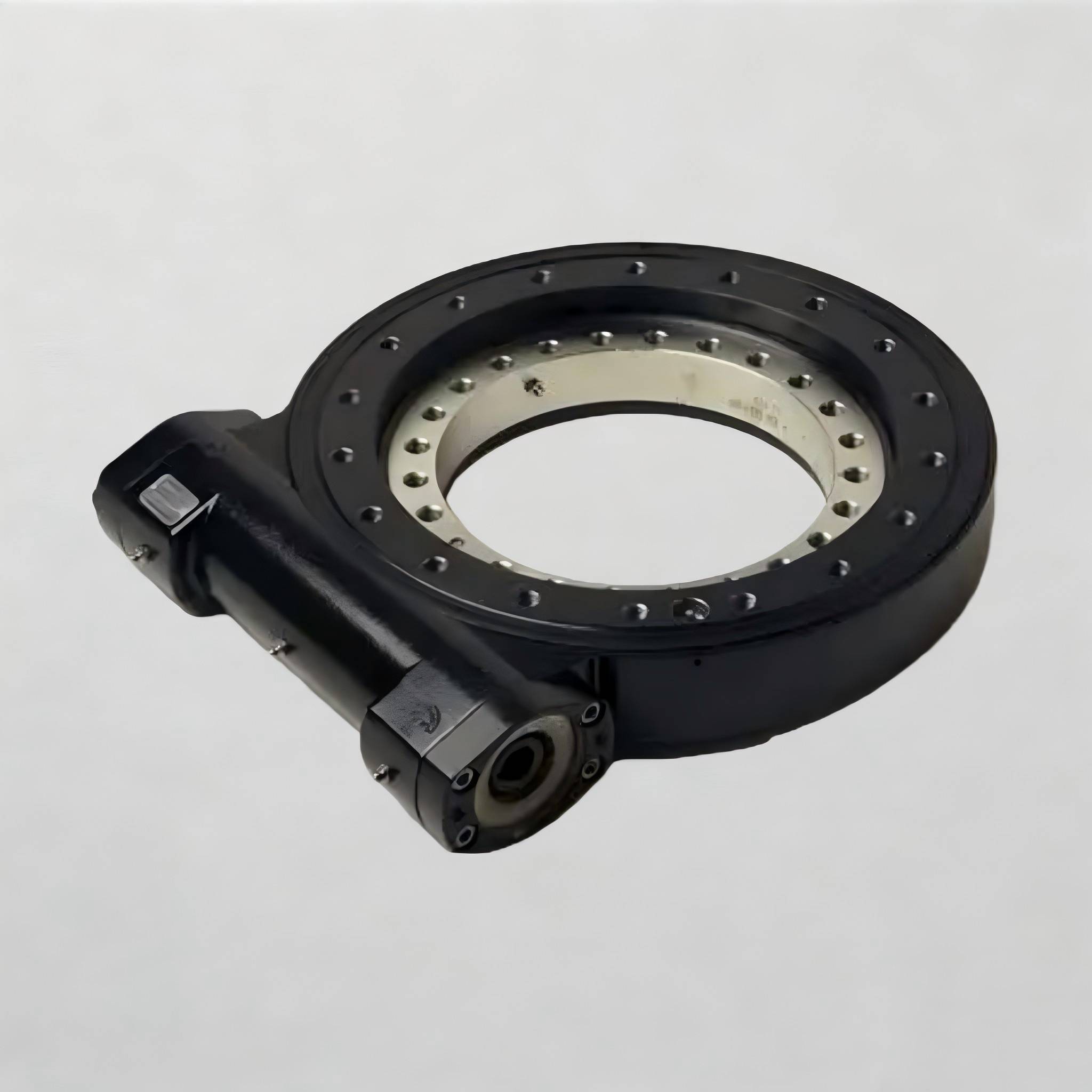

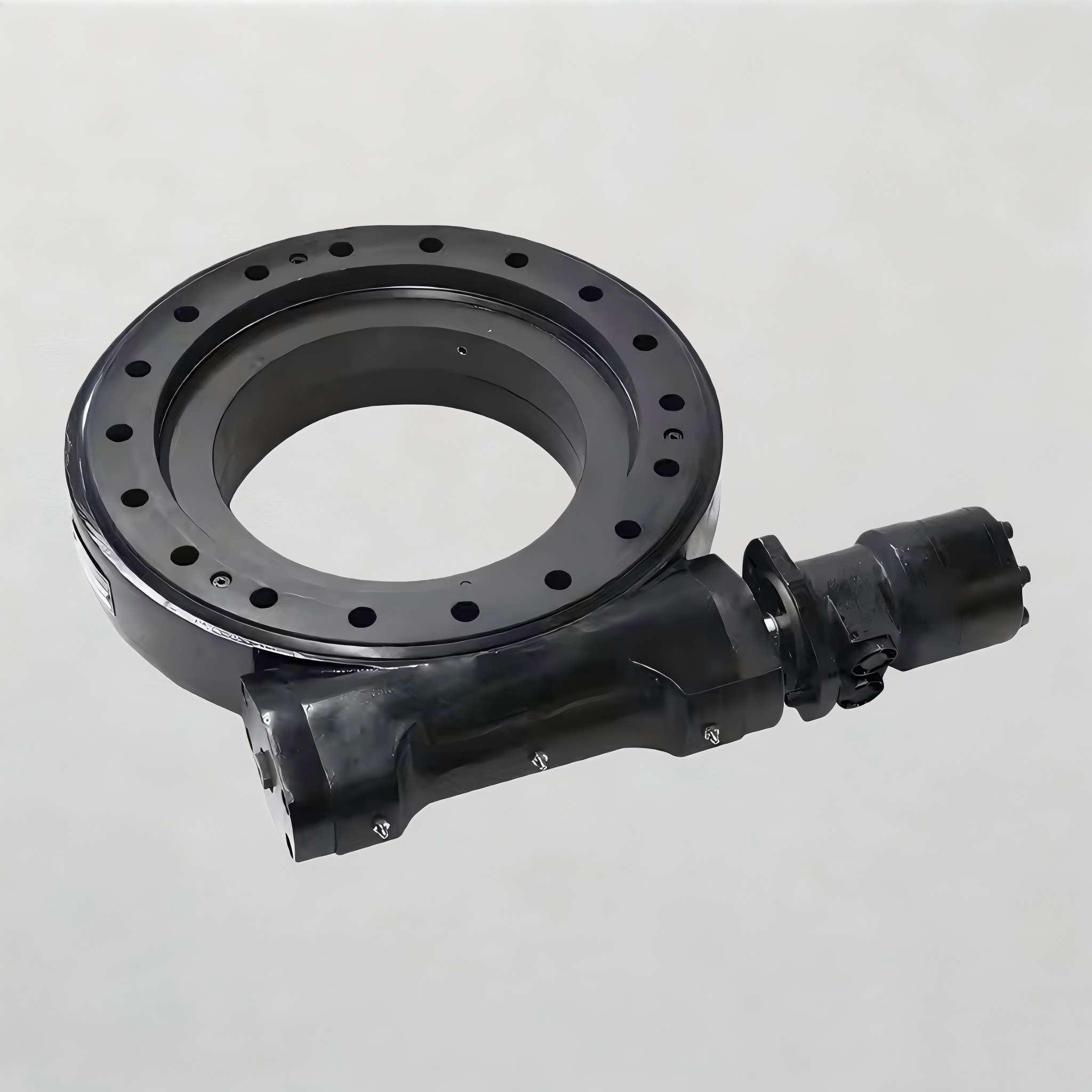

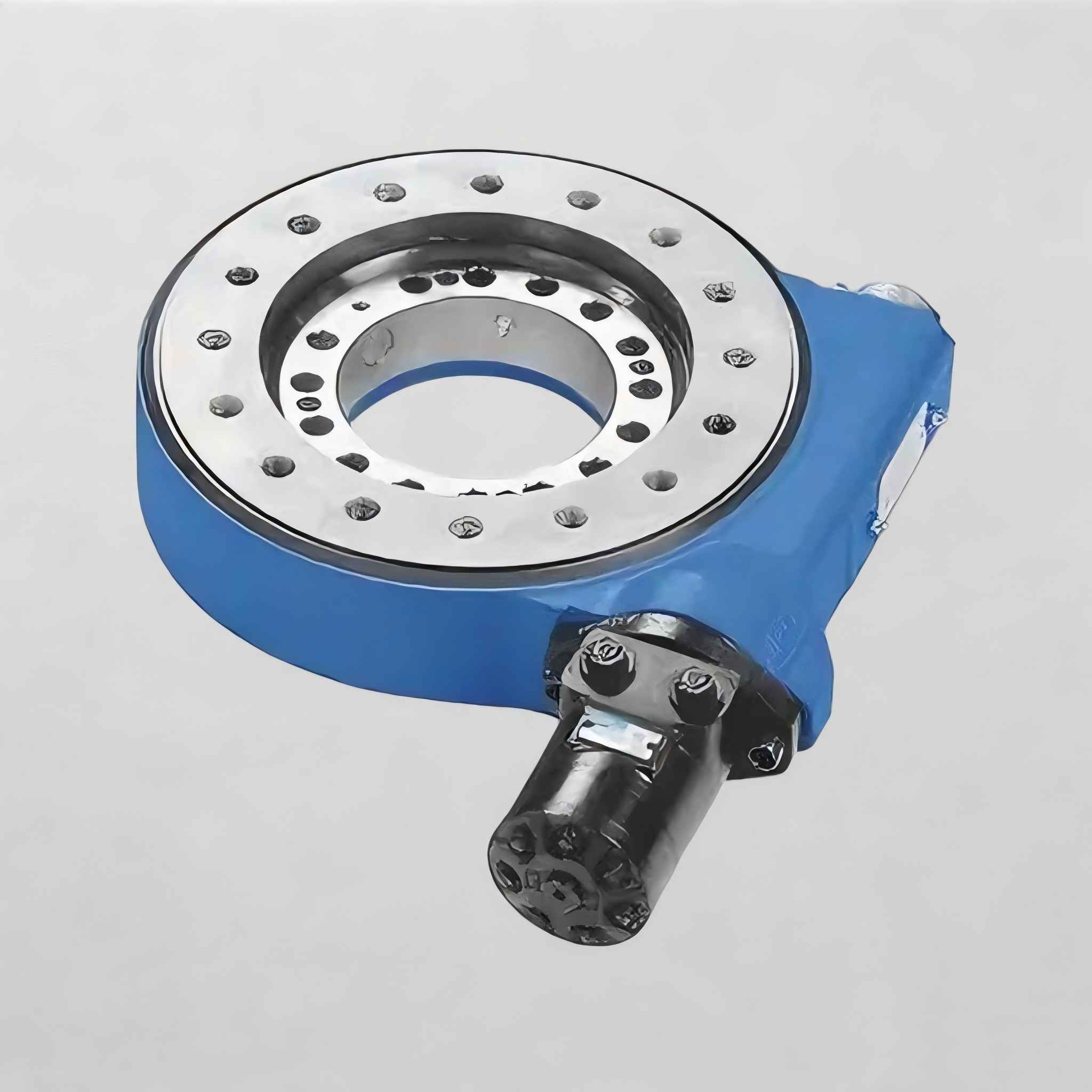

Enclosed Housing Slewing Drive
Enclosed housing slewing drive
A Enclosed-type slewing drive is an integrated drive unit with a completely enclosed housing design. Its key components, such as the slewing bearing, reduction mechanism, and gear set, are fully enclosed within the sealed housing, with only the flange connection surface and power interface exposed. This integrated design allows for easy installation. This type of slewing drive offers superior sealing performance, effectively preventing dust and impurities from entering the drive and affecting transmission, thus ensuring efficient and stable operation.
Enclosed housing slewing drive advantages
Fully Enclosed Structure for Enhanced Protection
The LTZC features a fully sealed design, effectively preventing dust, moisture, and impurities from entering the internal gears and slewing bearing, thus improving long-term operational reliability.
Integrated High-Precision Slewing Bearing
The enclosed slewing drive integrates the slewing bearing, reduction mechanism, and gearbox into a single unit, enabling high-precision meshing and transmission of the worm gear.
High Weather Resistance, Suitable for Harsh Environments
The surface is coated with an anti-corrosion layer and sealed for protection, maintaining stable torque output even in salt spray, high humidity, sandstorms, and corrosive environments, meeting the requirements of outdoor and marine applications.
Strict Quality Control and International Certification Support
LTZC possesses a complete manufacturing system for slewing drives, with its own production facility and ISO/classification society certifications, ensuring that the slewing drives meet international engineering application standards in terms of precision and durability.
Get a quote for LTZC bearings View LTZC quality and certifications View LTZC manufacturing capabilities
SE series-Enclosed Housing Slewing Drive
|
Model
|
Gear Ratio
|
Rated Output Torque (Nm)
|
Maximum Output Torque (Nm)
|
Holding Torque (Nm)
|
Output Speed (rpm)
|
Self-Locking
|
Weight (kg)
|
|
SE3
|
62:01:00
|
600
|
900
|
5000
|
≤2
|
Yes
|
23
|
|
SE5
|
62:01:00
|
1000
|
1500
|
10000
|
≤2
|
Yes
|
35
|
|
SE7
|
85:01:00
|
3000
|
4500
|
25000
|
≤1.5
|
Yes
|
55
|
|
SE9
|
85:01:00
|
6000
|
9000
|
50000
|
≤1.5
|
Yes
|
80
|
|
SE12
|
85:01:00
|
8000
|
12000
|
60000
|
≤1.5
|
Yes
|
115
|
|
SE14
|
85:01:00
|
10000
|
15000
|
70000
|
≤1.5
|
Yes
|
145
|
|
SE17
|
85:01:00
|
15000
|
22500
|
120000
|
≤1
|
Yes
|
210
|
|
SE21
|
85:01:00
|
21000
|
31500
|
160000
|
≤1
|
Yes
|
300
|
|
SE25
|
85:01:00
|
28000
|
42000
|
190000
|
≤1
|
Yes
|
370
|
